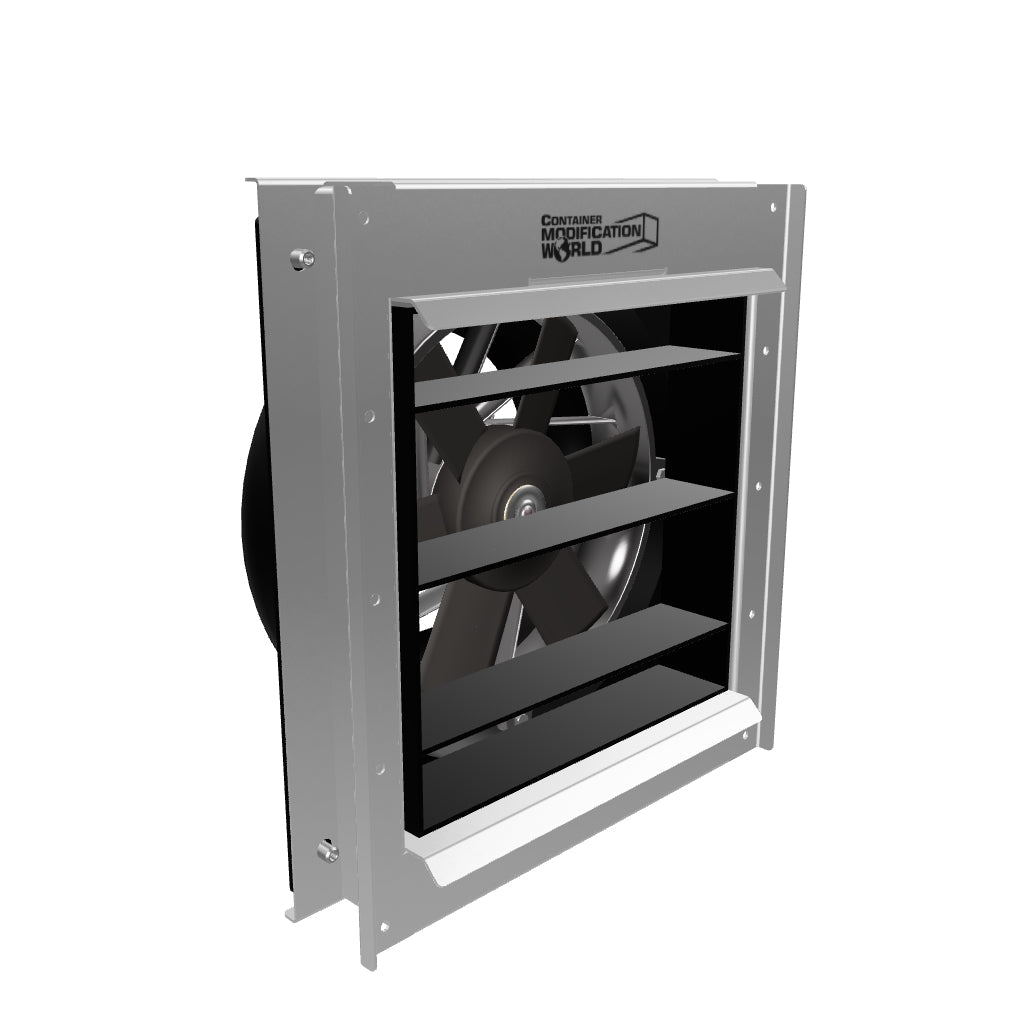

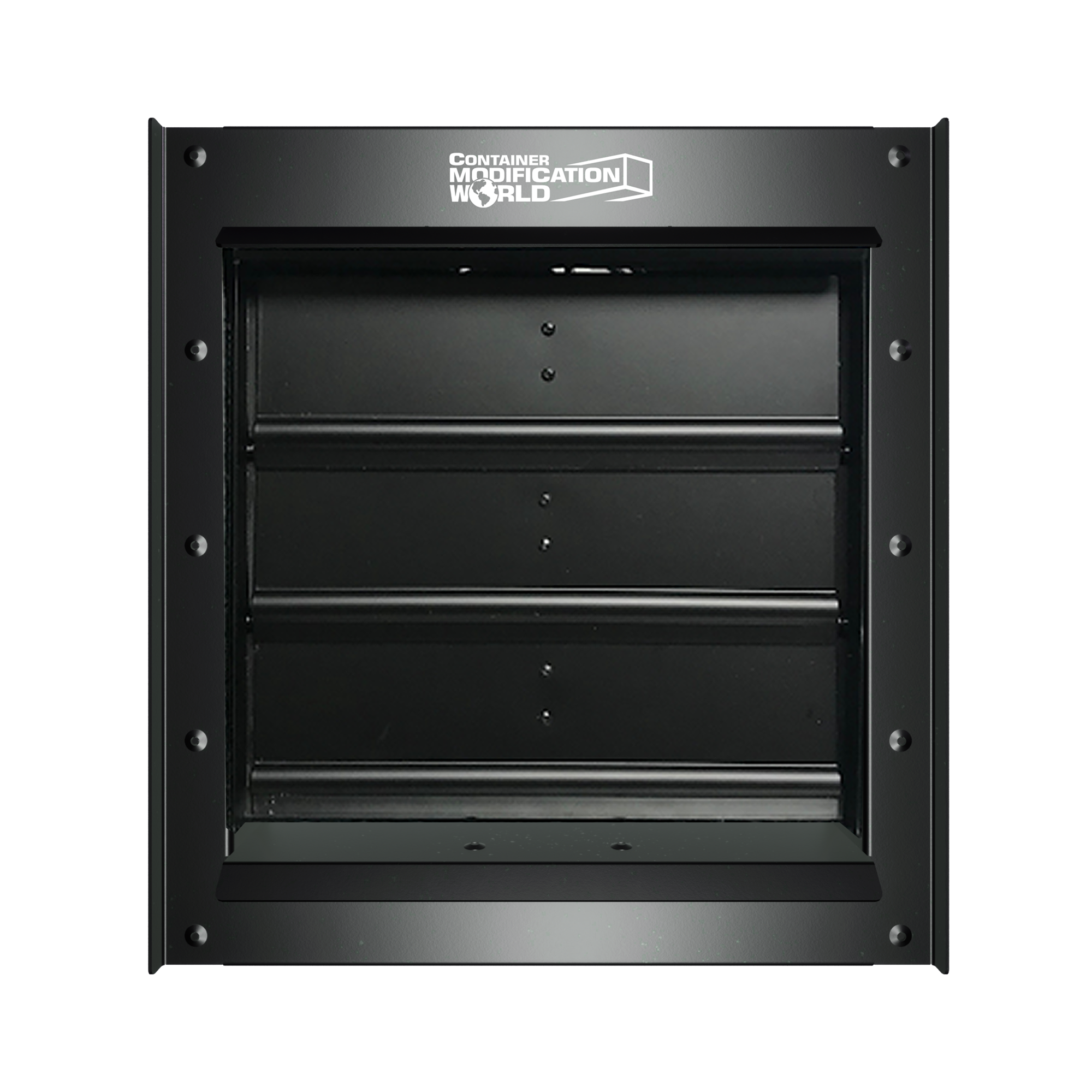

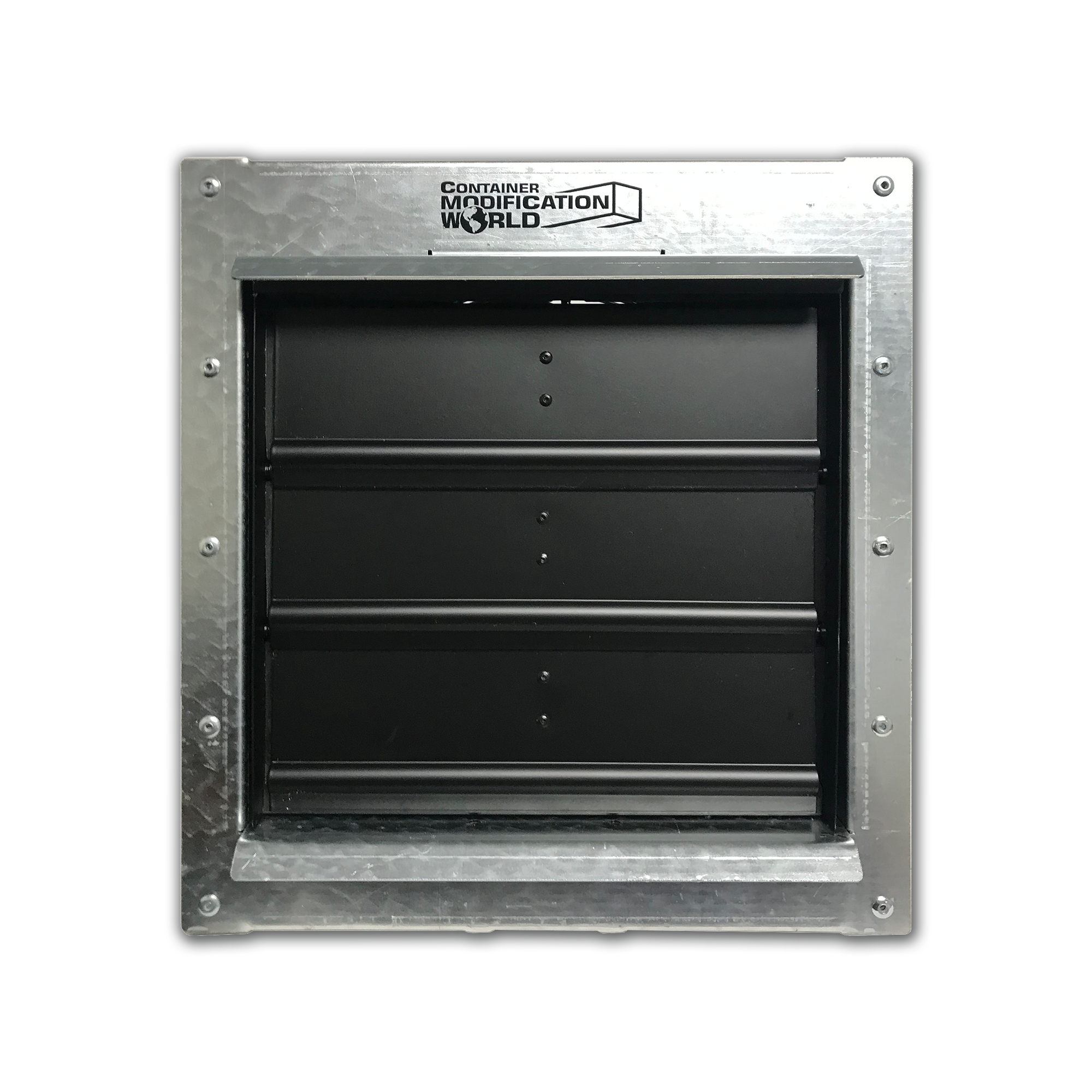

BIG AIR T10 AirLift (631 CFM) Exhaust Fan Products

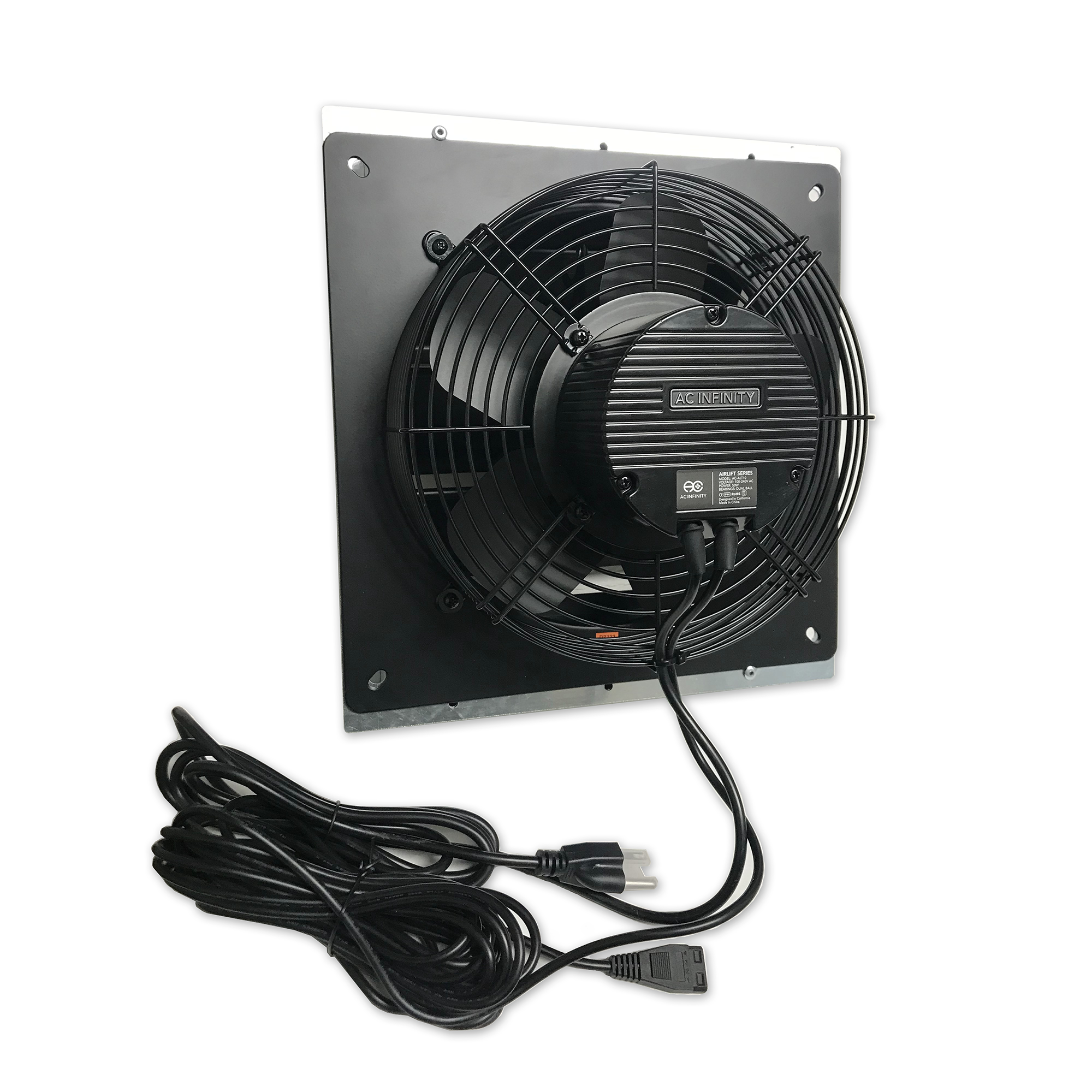

The T10 AirLift Exhaust Fan w/ Temperature and Humidity Controller is powered by AC Infinity and includes Bluetooth.

• Eliminate moisture and excess heat with our state-of-the-art computer-modeled design.

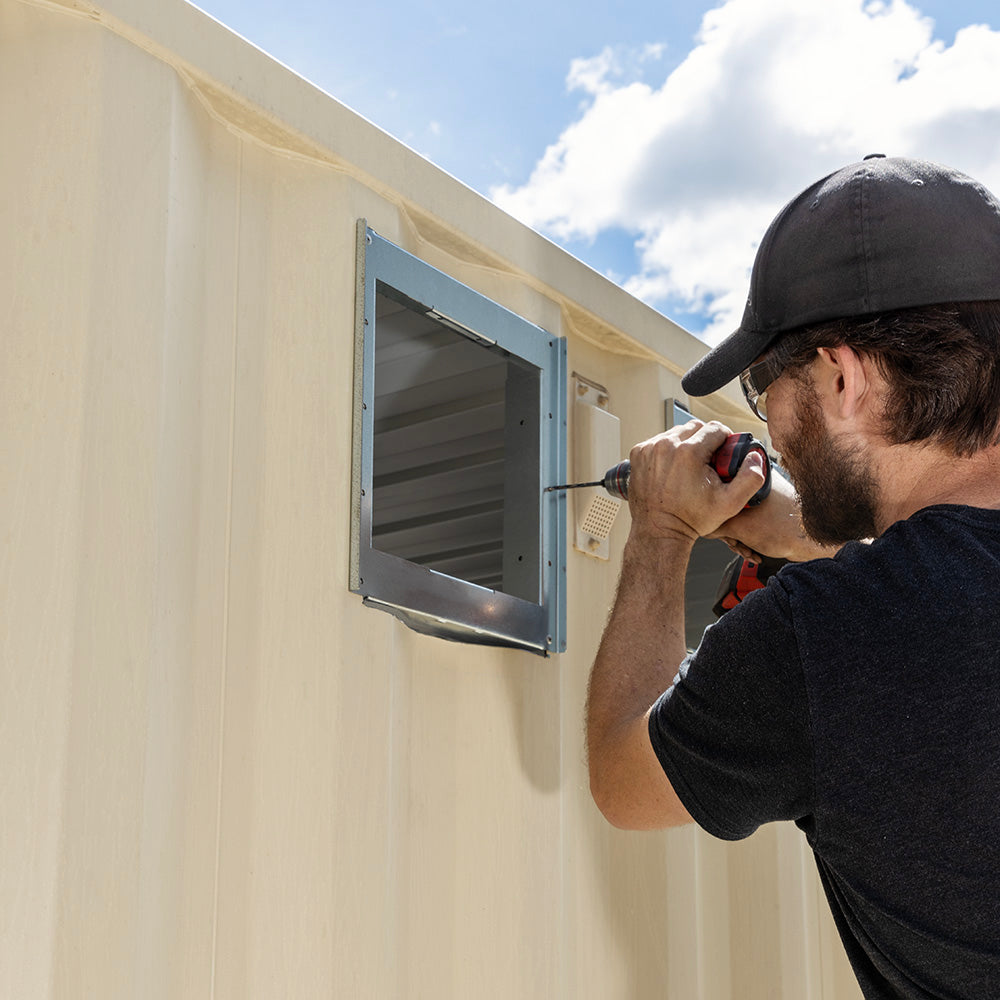

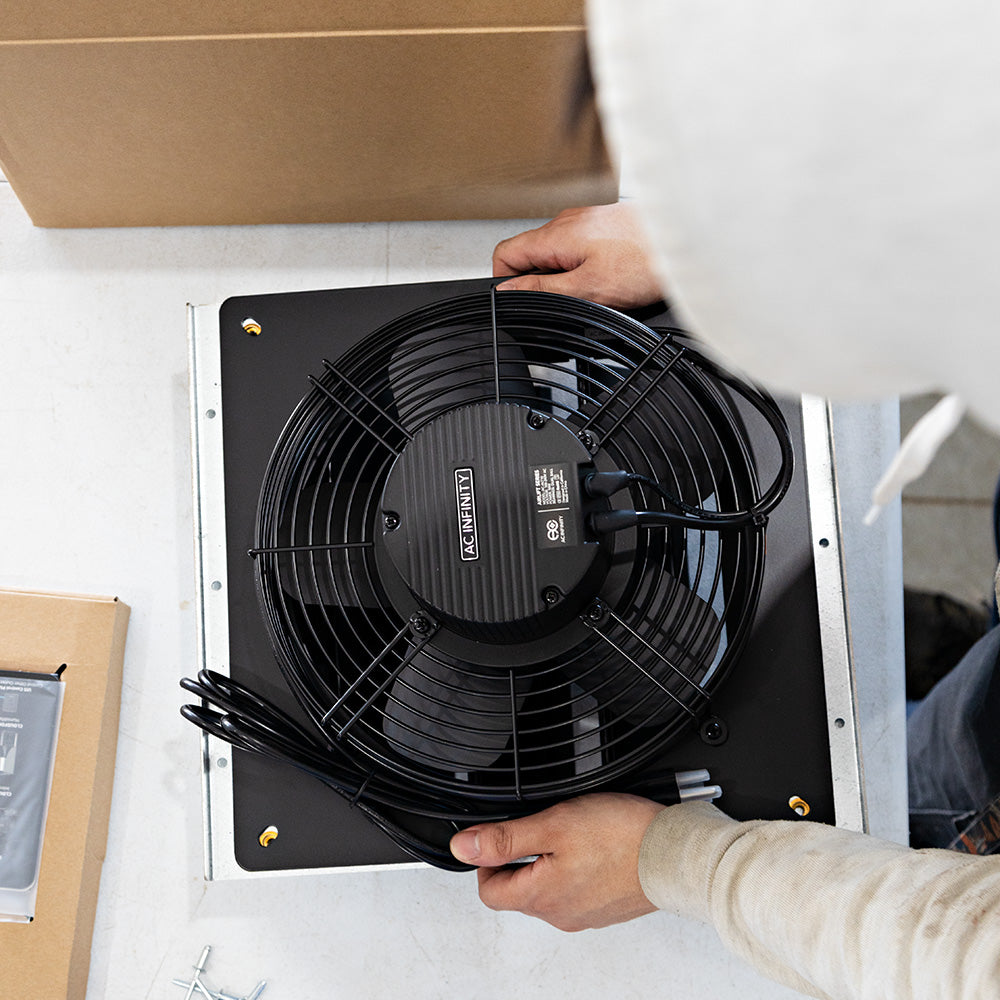

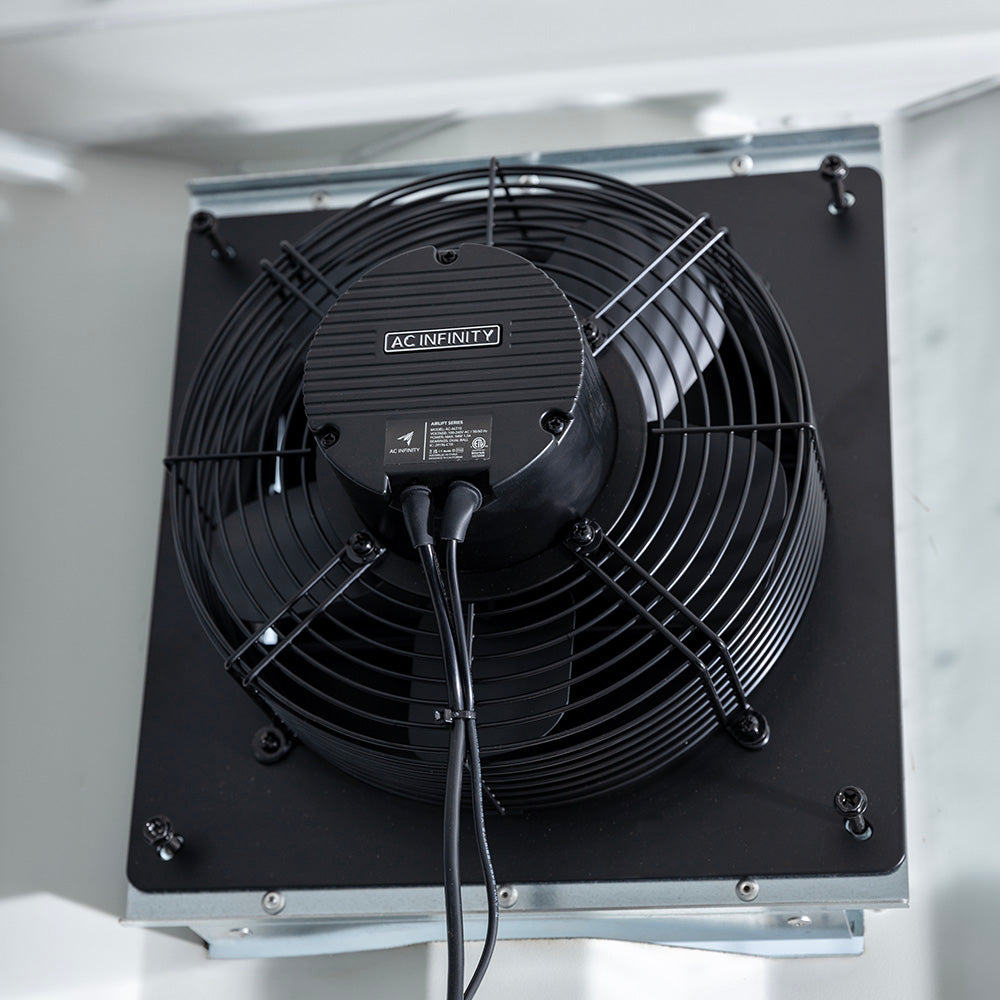

• This galvanized steel framing kit allows the T10 AirLift Exhaust Fan to be installed anywhere on shipping container sidewalls and end walls – from floor to ceiling.
• A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.

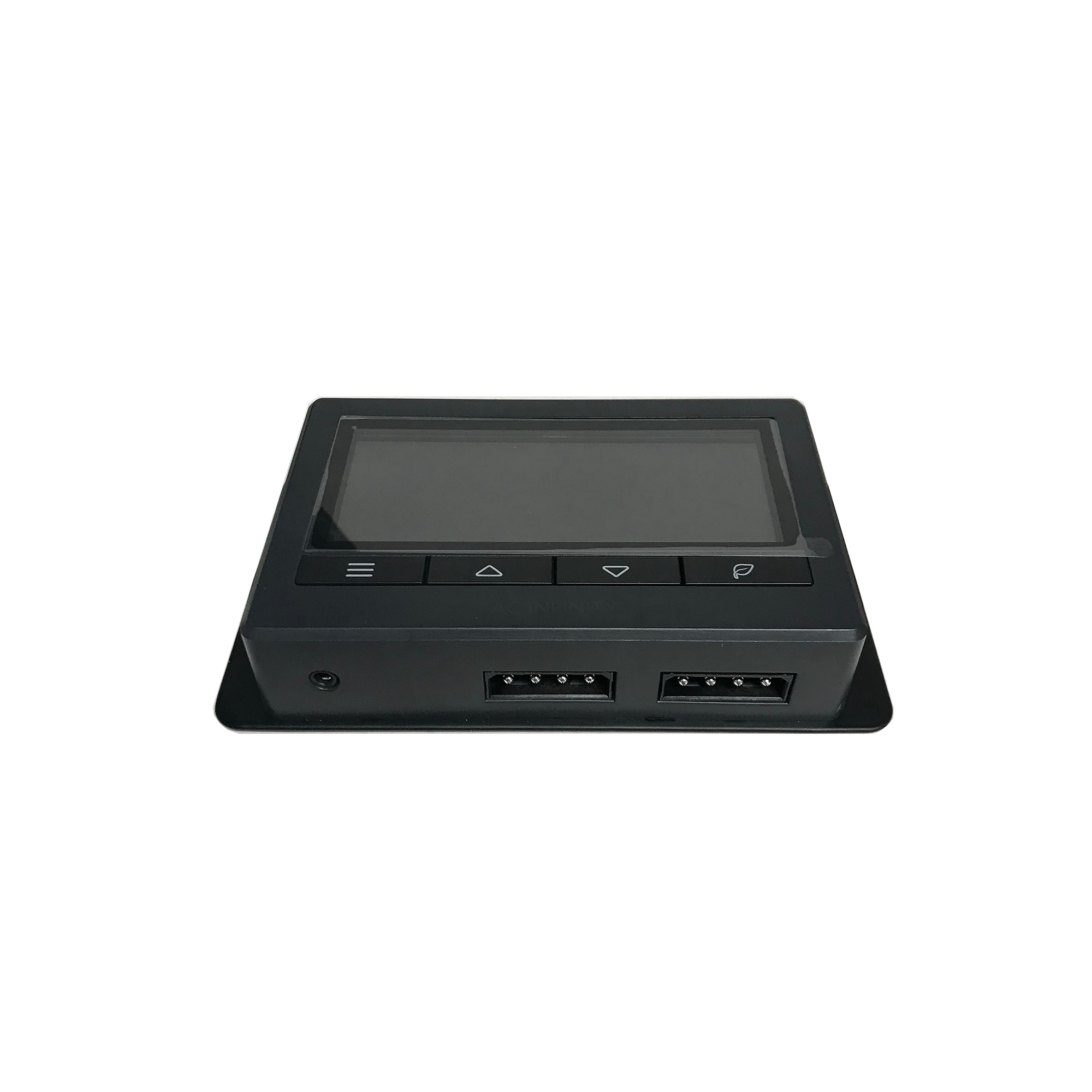

• Programmable controller with corded probe, can adjust fan speeds in response to temperatures and humidity.
• Now comes with Bluetooth

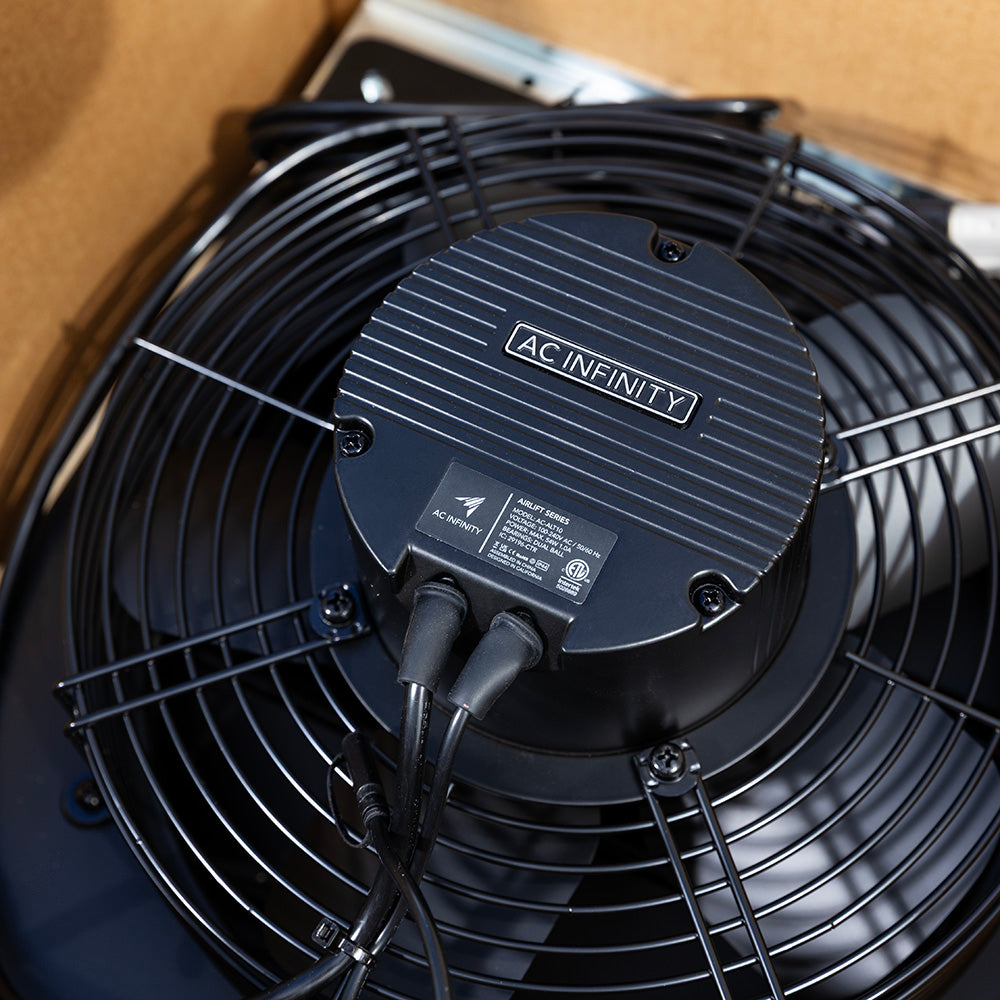

• Innovative EC-motor with PWM-control maximizes airflow while reducing energy consumption and noise levels
• Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.

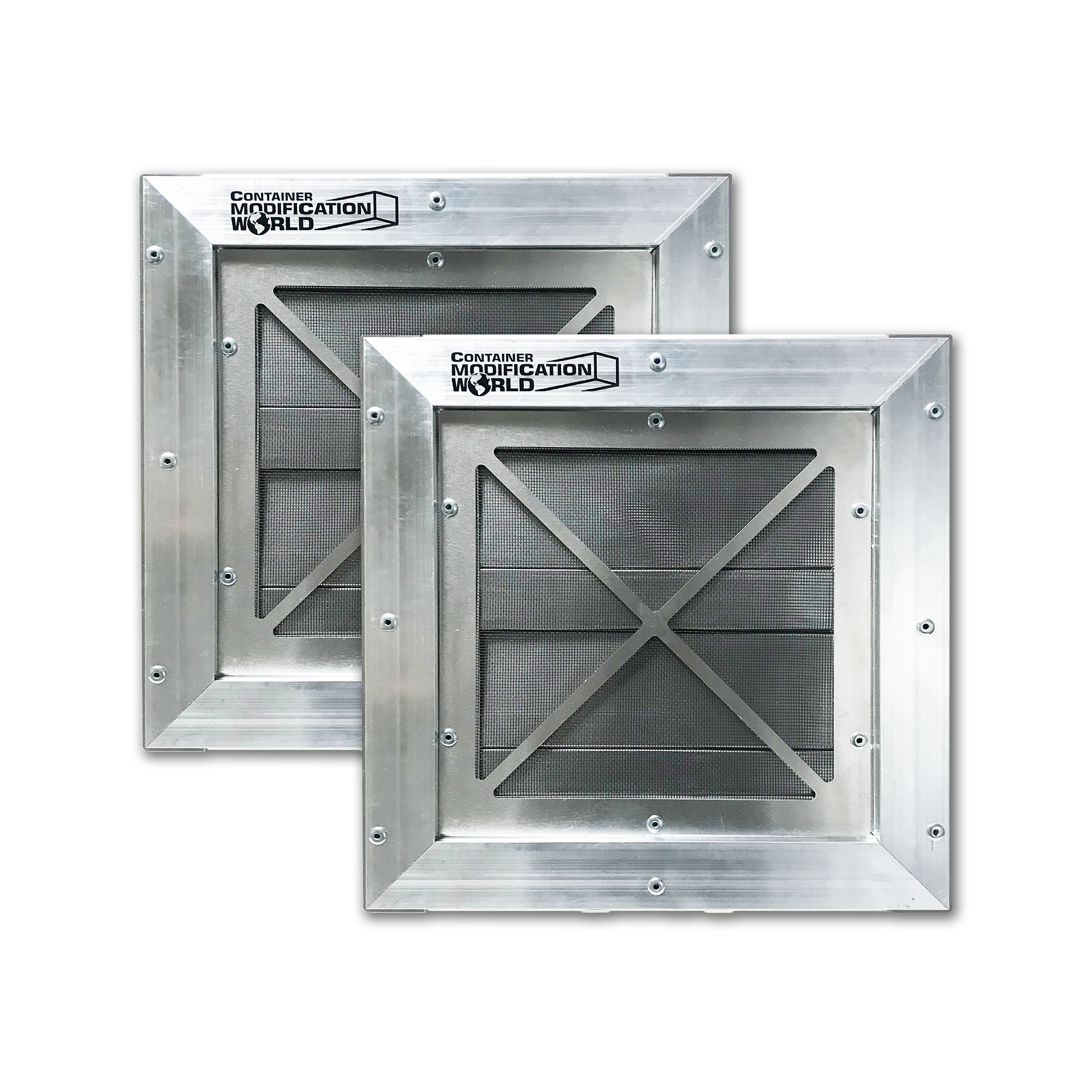

• The 10" Aluminum Gravity Louvers are also designed to be installed anywhere on shipping container side walls, end walls, or doors – from floor to ceiling.

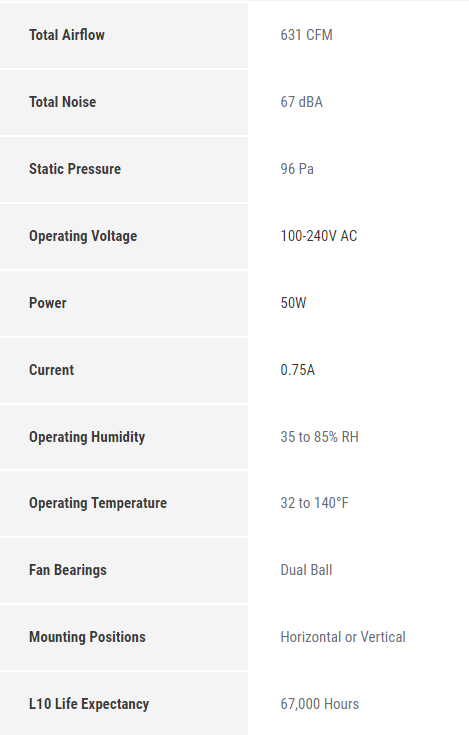

Specifications

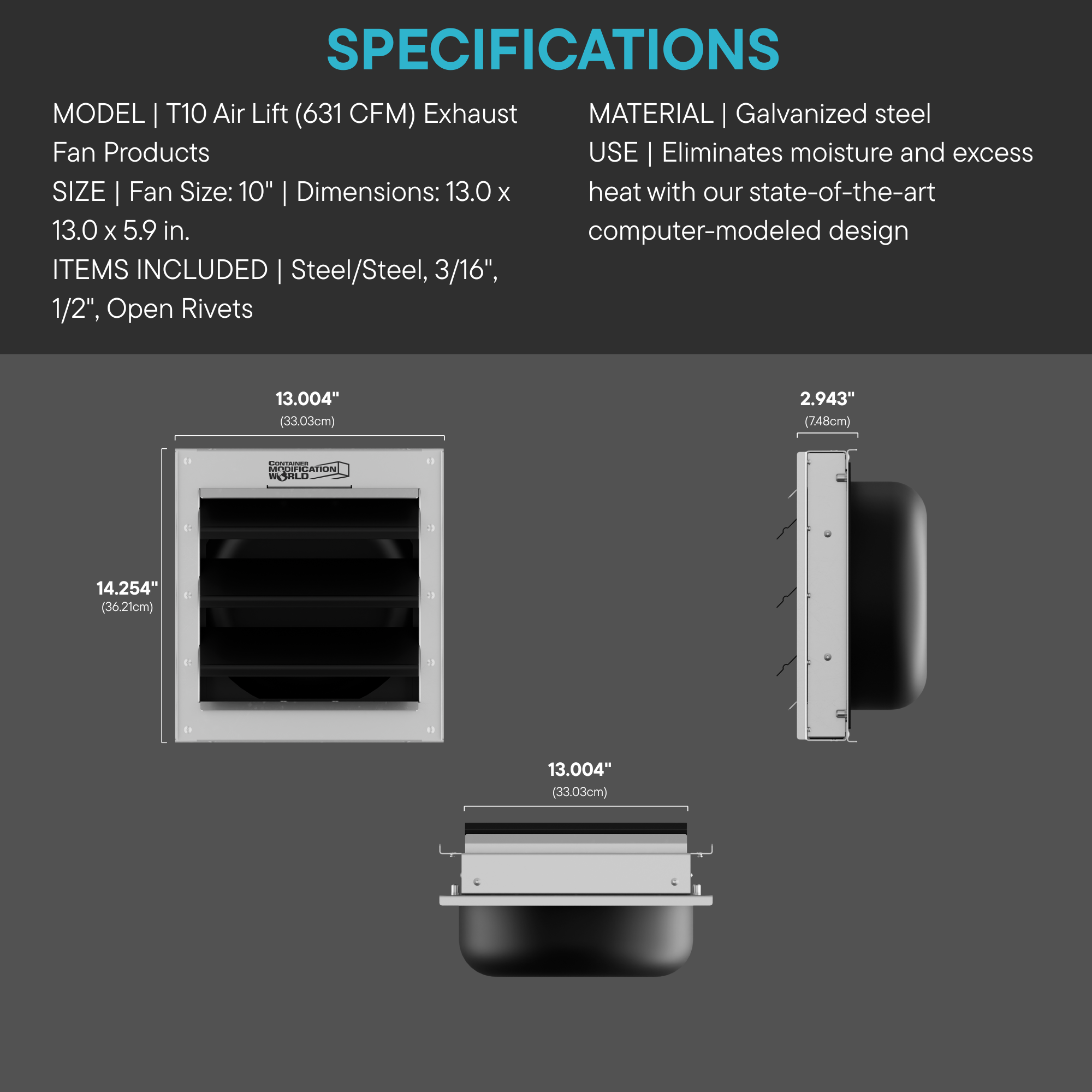

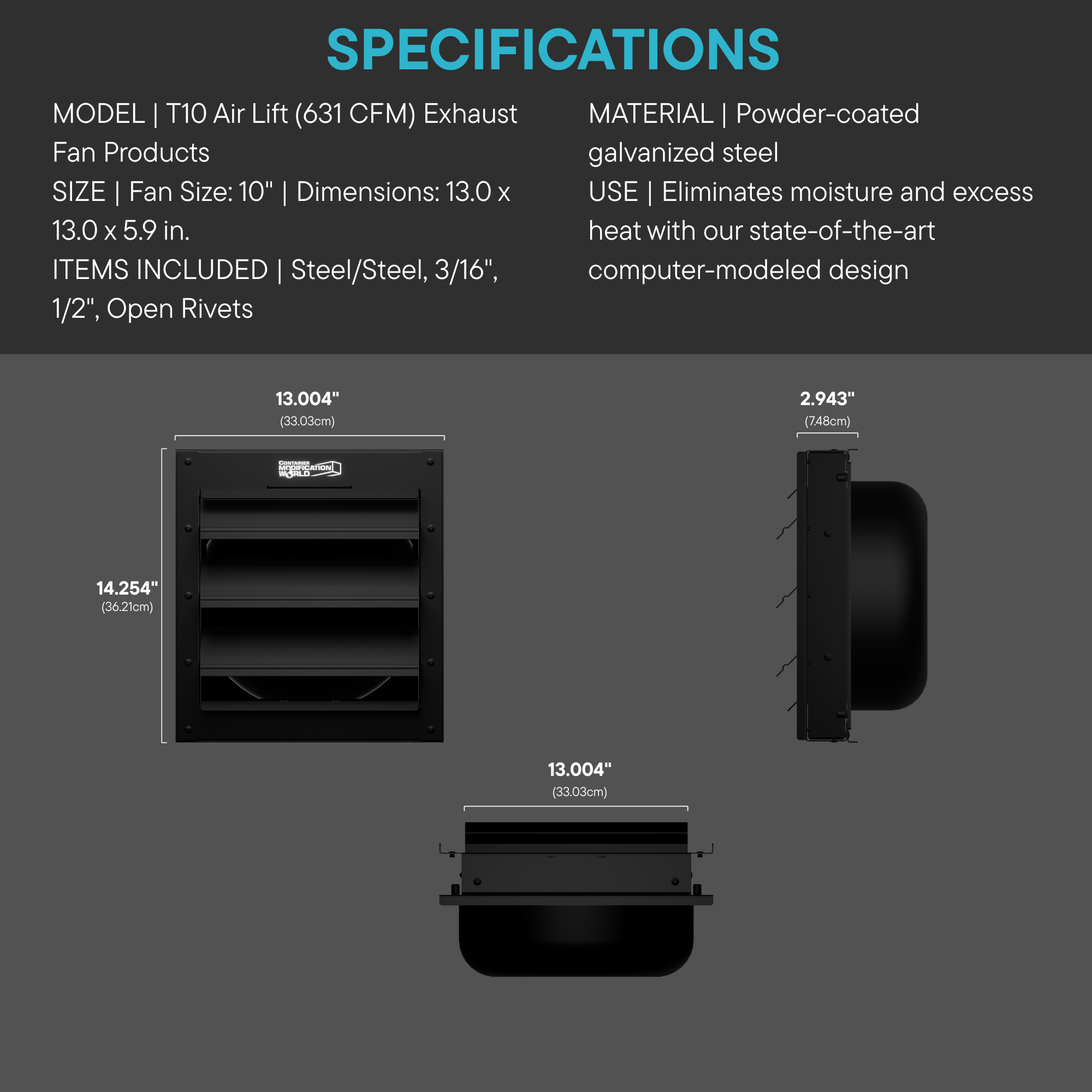

• Fan Size: 10” | Dimensions: 13.0 x 13.0 x 5.9 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

• The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller comes with a marking guide to make cutting a hole as easy as possible! Rivets and self-tapping screws are also included (we recommend using rivets).
• The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen. The above-mentioned variables include, but are not limited to the following:
  • Humidity

  • Interior temperature

  • Exterior temperature

  • Wind direction

  • Wind speed

  • Foundation

  • Adequate airflow under the container

  • Direct sunlight to the roof

  • Direct sunlight to walls/doors

  • Type of contents stored

  • The volume of contents stored inside
  • Color of container
  • Number of stock vents in the container

Unfortunately, stock container vents are not enough to prevent condensation. Typically, used containers have between 2 and 4 vents, and the actual total air passage hole is about the size of a dime. These vents are designed to keep sea water out and are meant more as a method to equalize pressure than to exchange air.

The T10 Air Lift Exhaust Fan w/ Temperature and Humidity Controller is truly a groundbreaking, powerful solution for ventilating shipping containers!

Warranty

• Electrical parts are not covered by warranty after purchase unless there is a manufacturing defect.

Included hardware

• Steel/Steel, 3/16", 1/2", Open Rivets

Photo Gallery

Installation Instructions

T10 Installation Instructions
