Description

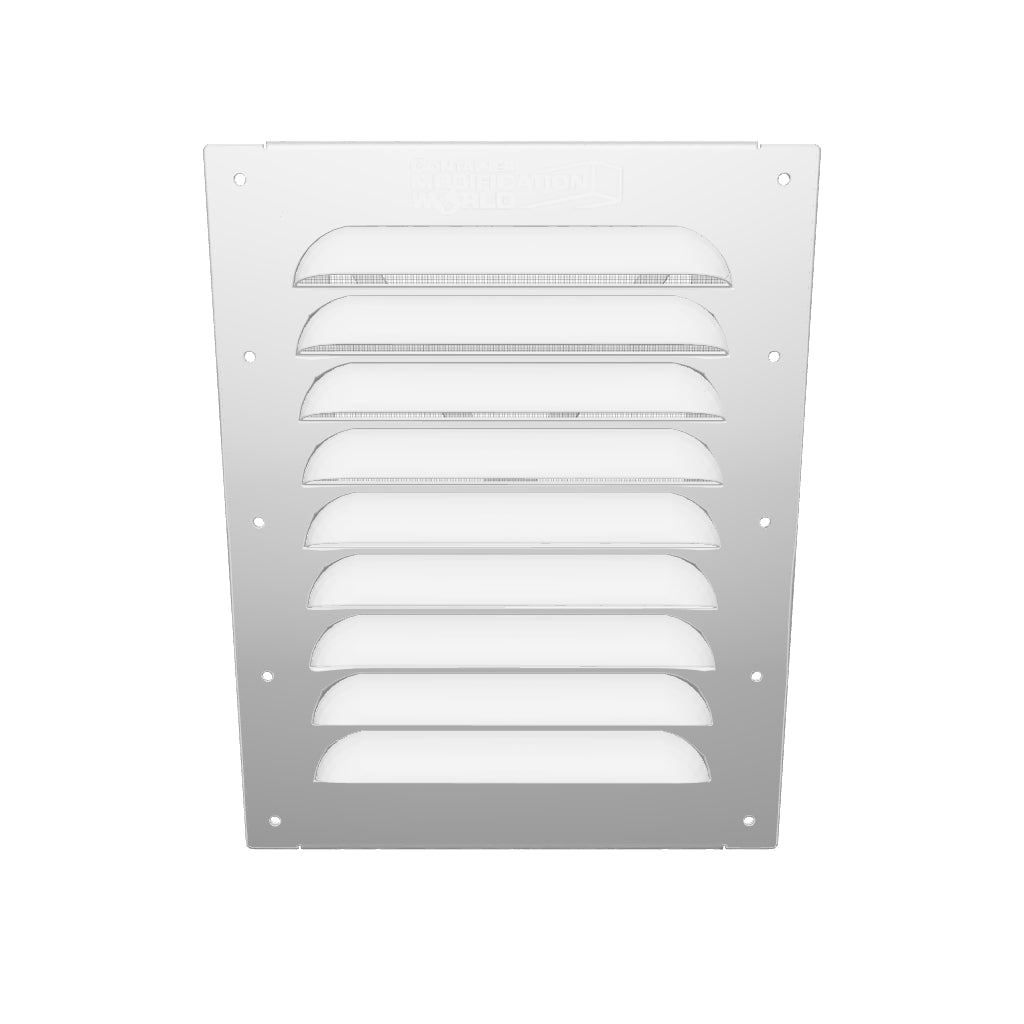

BigAir Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.
BigAir Louvered Container Vents (sizes: 30, 45 & 60), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets).
A minimum of two vents are required per container for temperature & moisture control in temperate climates. Four vents per container are suggested in tropical climates. For HAZMAT ventilation, two vents installed high and two vents installed low is suggested. Customer's responsibility to ensure OSHA compliance when storing hazardous materials.
Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BigAir will never rust!
The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.
The above-mentioned variables include, but are not limited to the following:
► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
► Direct sunlight to roof
► Direct sunlight to walls/doors
► Type of contents stored
► The volume of contents stored inside
► Color of container
► Specifically the roof
► Number of stock vents in the container
Features:
- Engineered to be installed anywhere on shipping container side walls, end walls or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
- Utilizes Duraflo 680812 CSA Approved Gable Vent
- High UV Resistant Polypropylene and Laser Cut Aluminum Frame will never rust!
- 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose
- BigAir 30 = 9” x 10 ½” Rough Opening
- BigAir 45 = 9" x 14" Rough Opening
- BigAir 60 = 9” x 17 ⅞” Rough Opening
- Disclaimer: Ensure Your Container Complies With OSHA When Storing Hazardous Materials
- Includes Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self Tapping Screws
Big Air 45 Specifications:
- Manufacturer : Container Modification World
- Item Weight : 1.44 pounds
- Package Dimensions : 15 x 12 x 5 inches
- Material : Wood, Aluminum, Plastic
- Item Package Quantity : 1
-
Batteries Required? : No
Installation Instructions
BigAir30 Installation Instructions (Download PDF)
BigAir45 Installation Instructions (Download PDF)
BigAir60 Installation Instructions (Download PDF)
Short Link
https://containermodificationworld.com/bigair45-vents
You may also like
Recently viewed
They work even better than I thought they would when paired with the T10 Air Lift (631 CFM) lovered exhaust fan and the controller. This combo keeps a 40' High cube within about 7 degrees F (4 degrees C) of the outside temperature, and within 2 points of outside humidity in Central Texas. Exhaust T10 is located on the South side, 2" from the container's roof, and the intakes are located 6" off the floor on the North side; just clear the doors when they are open. I could not use a zip disk cutter as the container contained items that the sparks from it would damage. I drilled two sets (top left, bottom right) of three overlapping 1/4" holes, not exceeding the outline of the template diameter. This allowed me to insert a Sawzall metal-cutting blade, making a near-perfect square cut hole. I used a handheld rivet gun; I really wish I had the powered one.
As advertised. Great YouTube videos on container guy!
Great quality, so far working as it should.

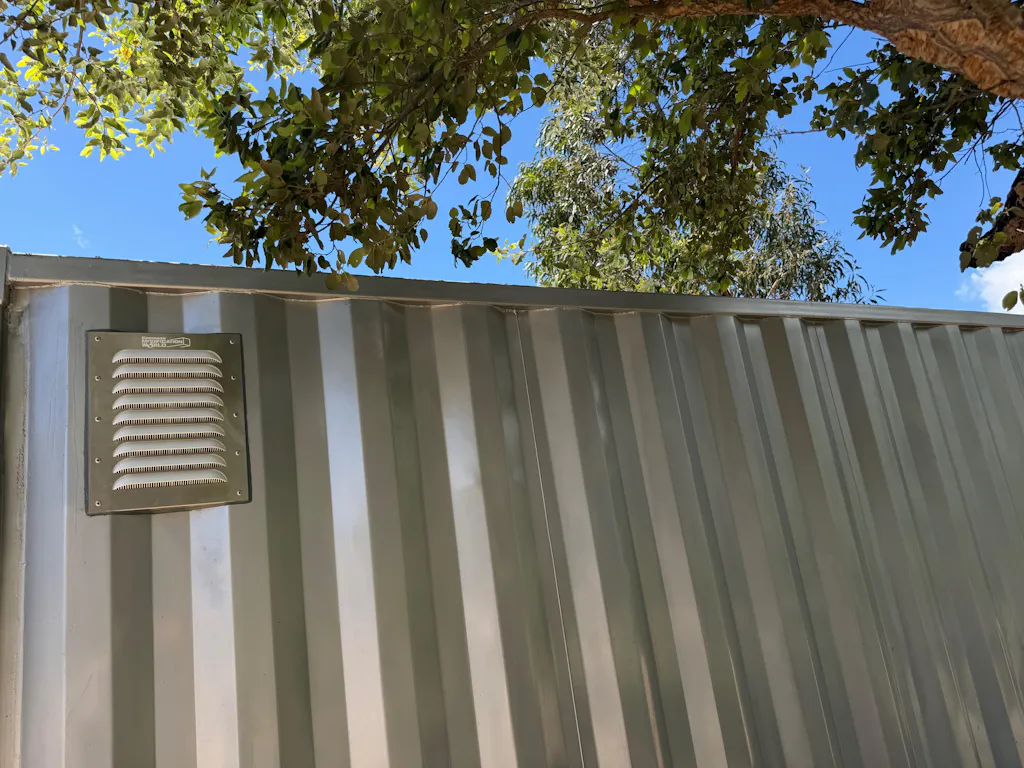

Big air 45 with bug, riveted, then quad max black urethane caulking.
You need to work on your quality control. The vents were longer than 14 inches. One by 3/8 and one by 1/4. A 9x14 template doesn't do much good if the vents are not the correct size. On the first vent, I made the mistake of using the template and not measuring the vent. I was smarter on the the second vent.
Awesome product, quick shipping.
