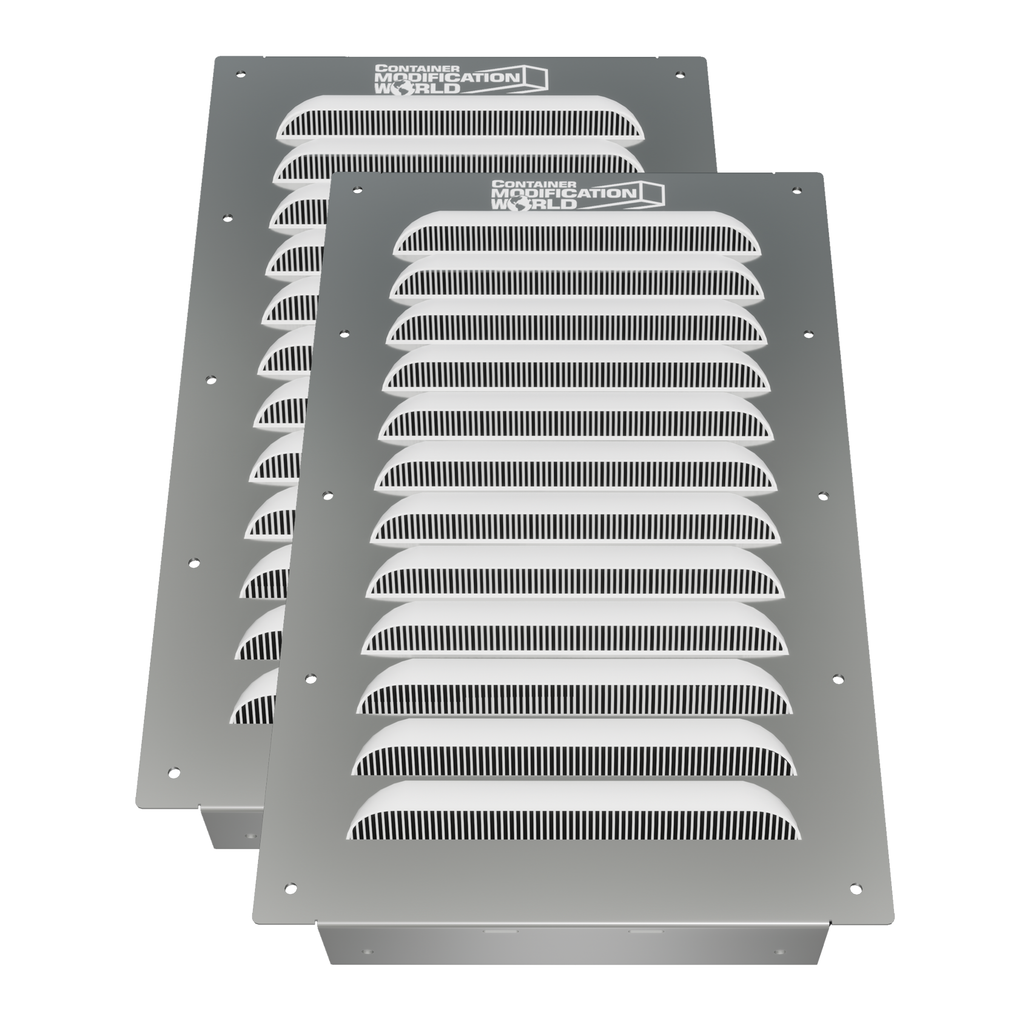

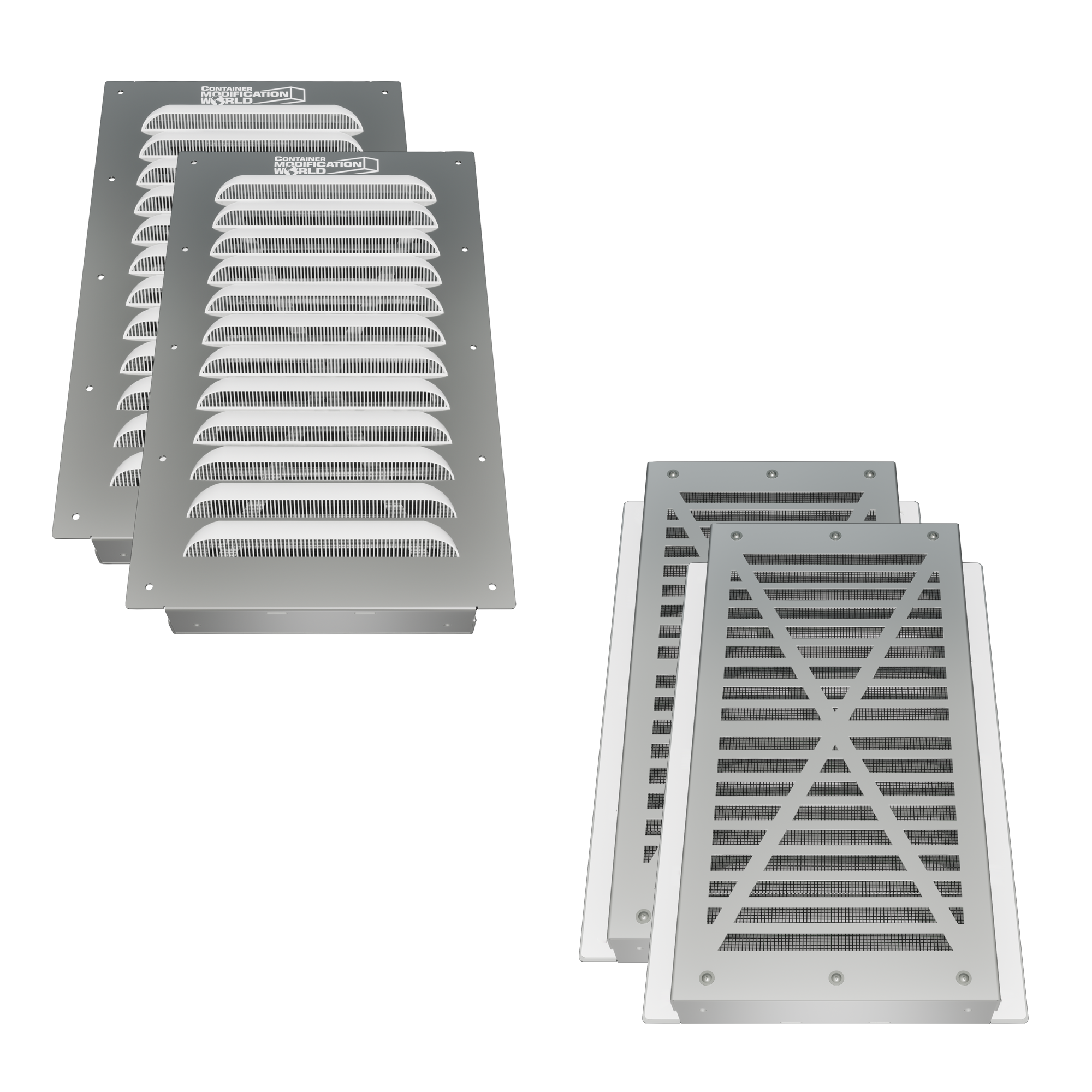

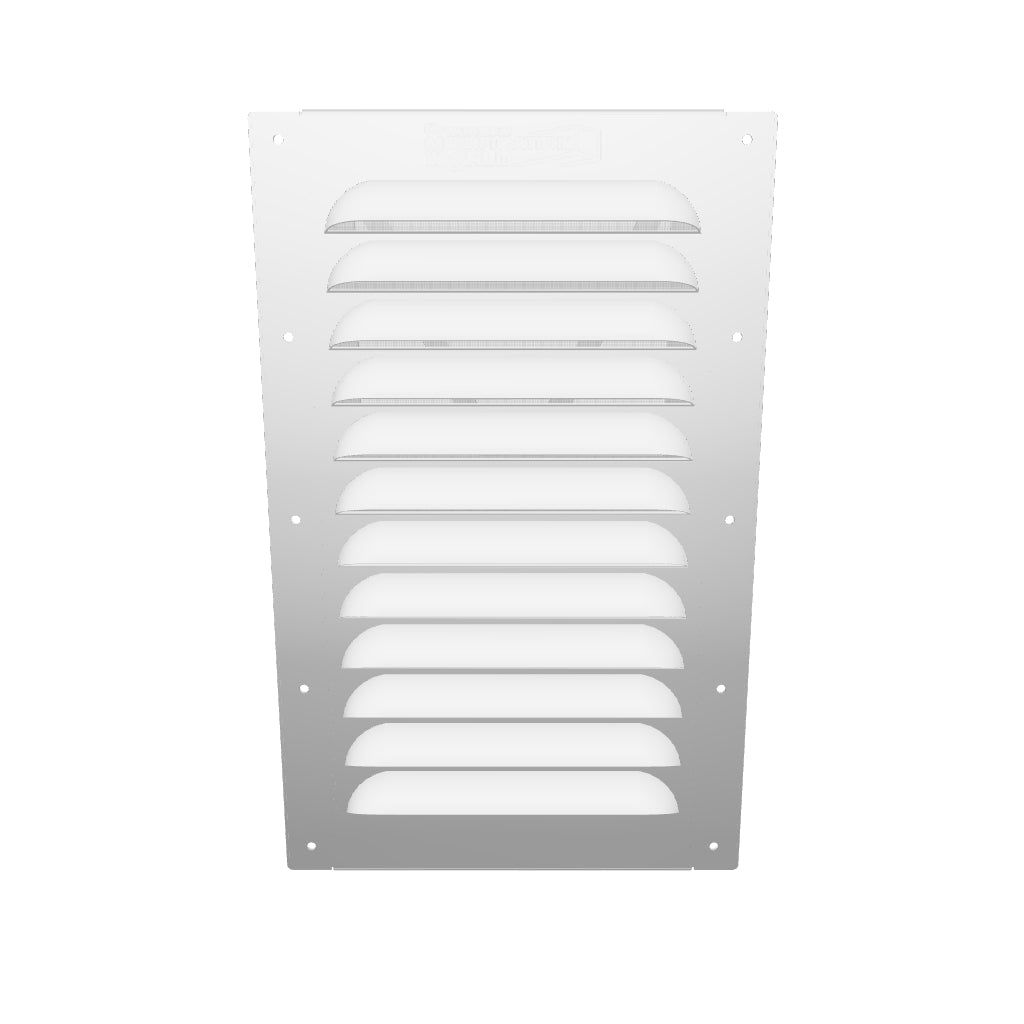

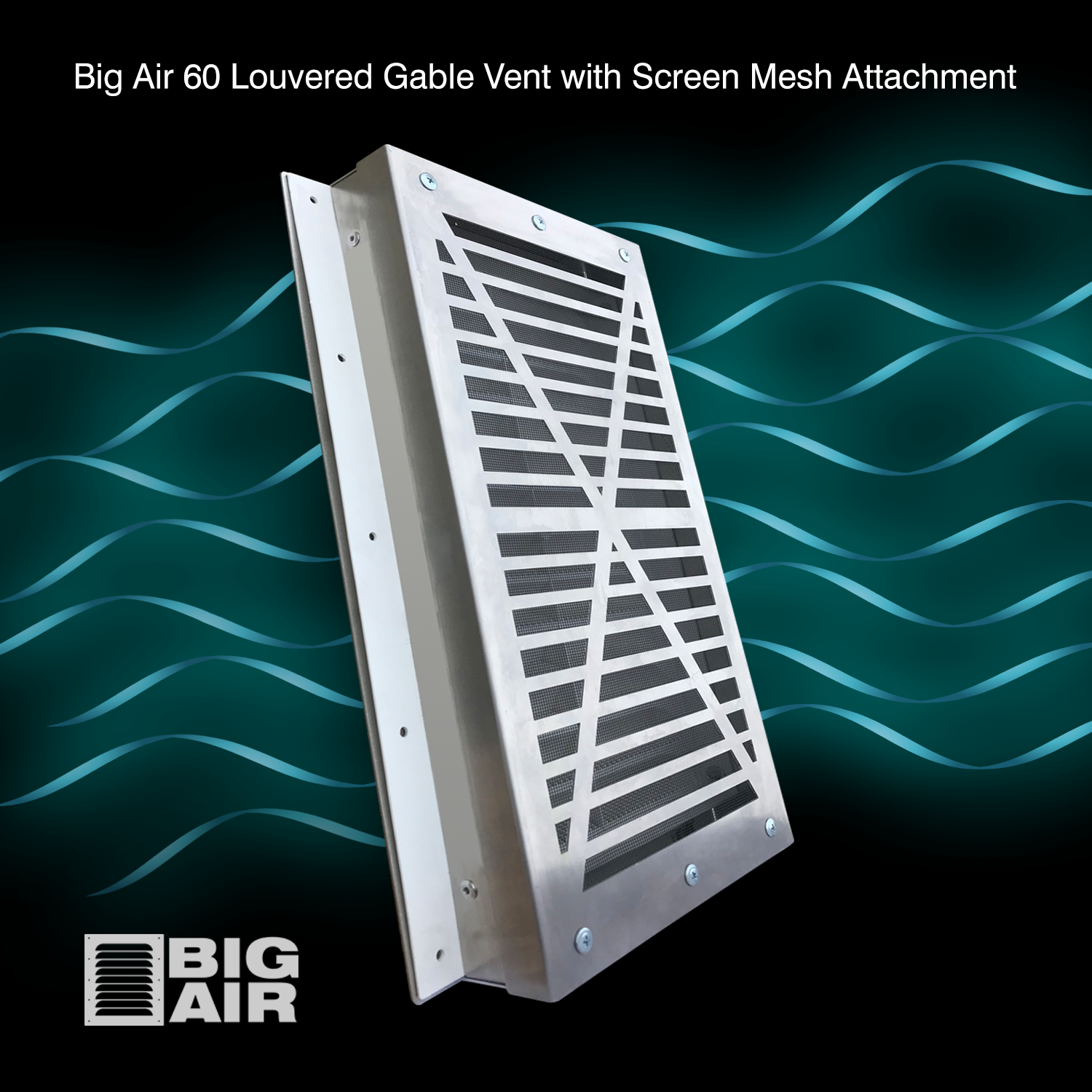

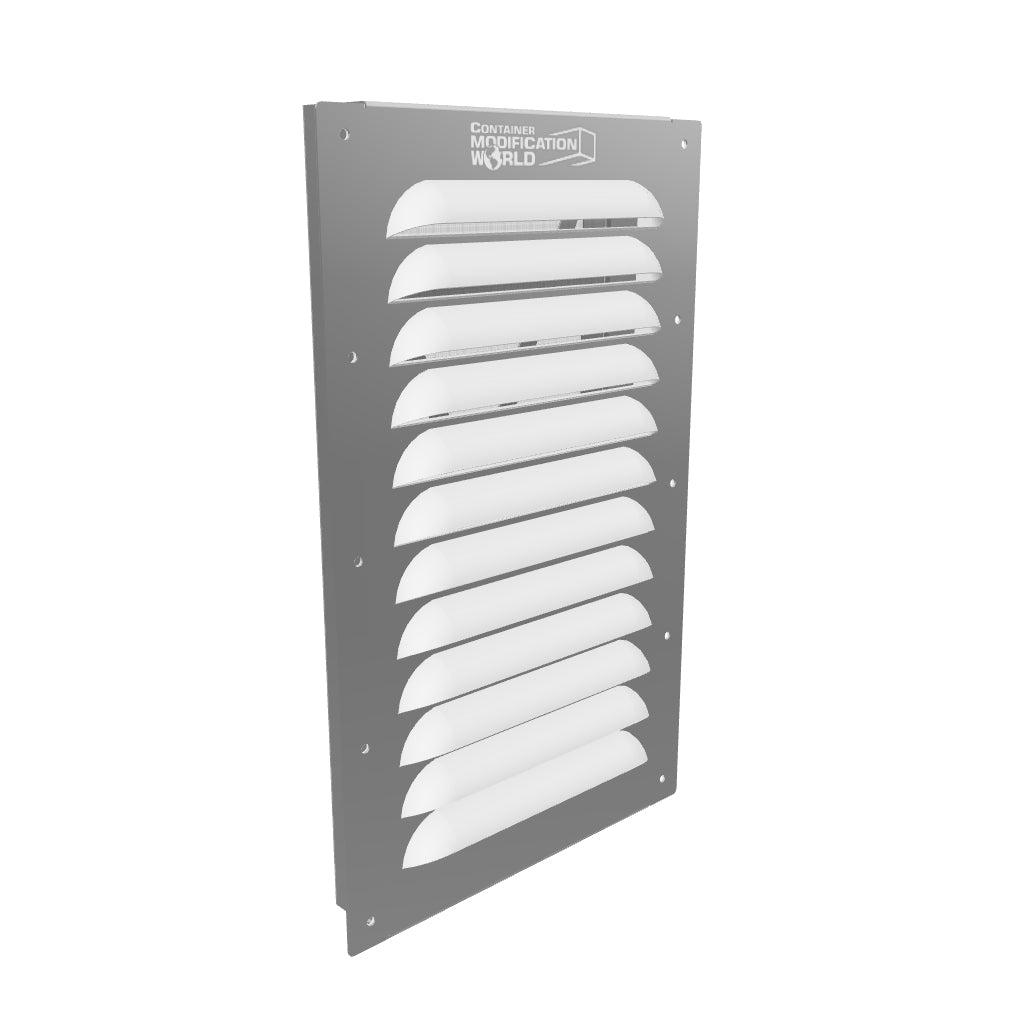

BIG AIR 60 Louvered Gable Vents

BigAir Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.

• BigAir Louvered Container Vents (sizes: 30 & 45), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets).



BigAir 60 Vents do not come with a marking guide.



• Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BIG AIR® will never rust!
• The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.

The above-mentioned variables include, but are not limited to the following:

• Humidity

• Interior temperature

• Exterior temperature

• Wind direction

• Wind speed

• Foundation

• Adequate airflow under the container

• Direct sunlight to roof

• Direct sunlight to walls/doors

• Type of contents stored

• The volume of contents stored inside

• Color of container

• Number of stock vents in the container

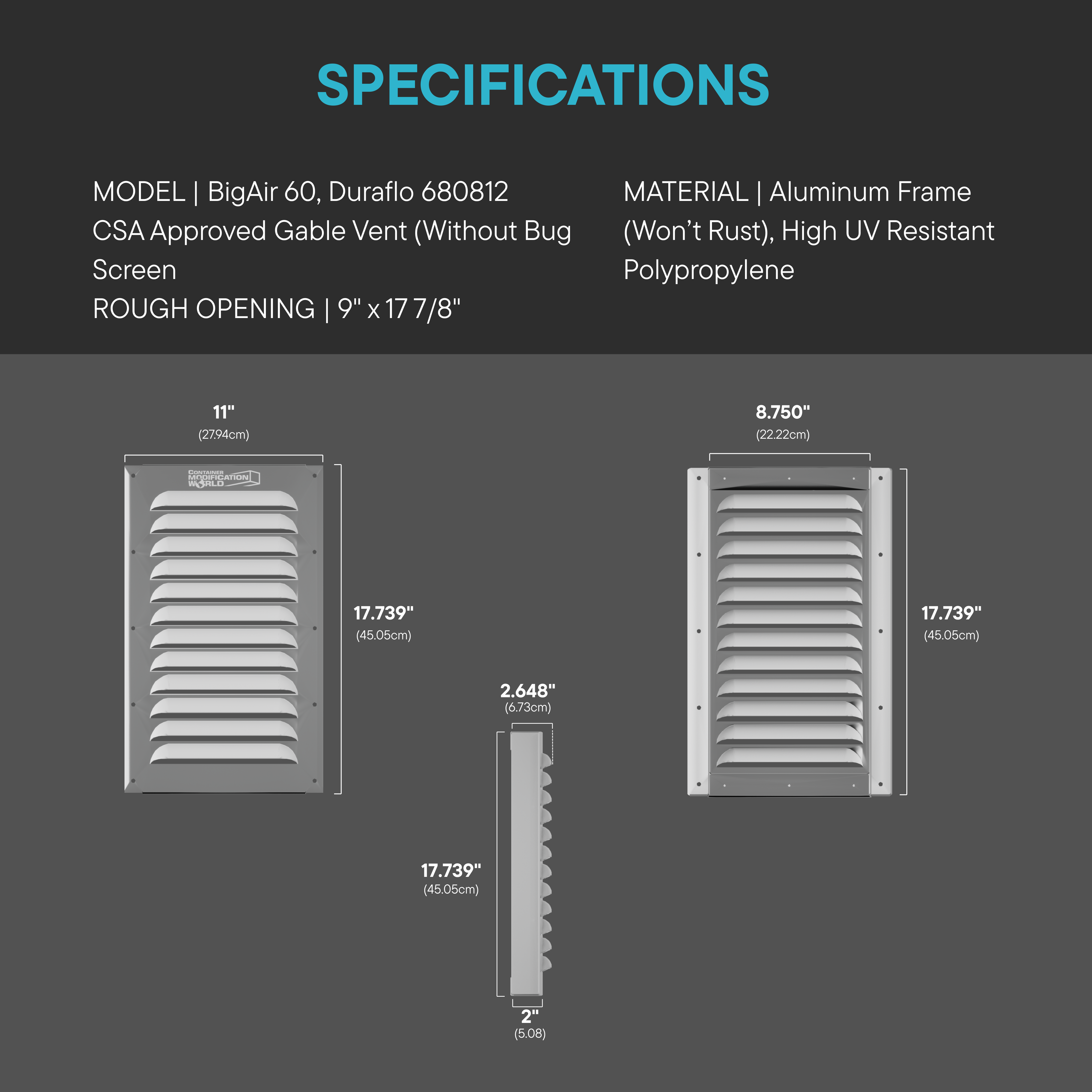

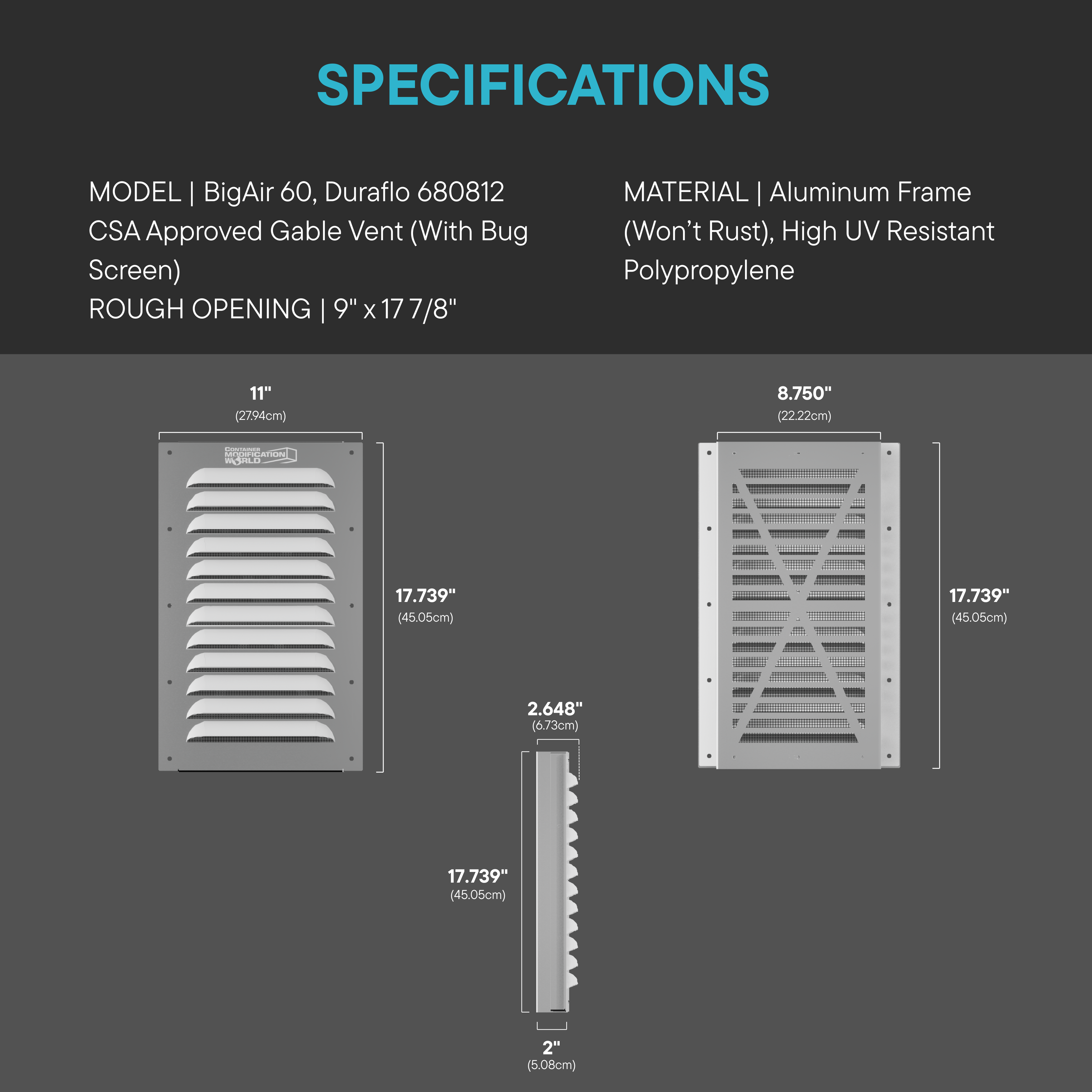

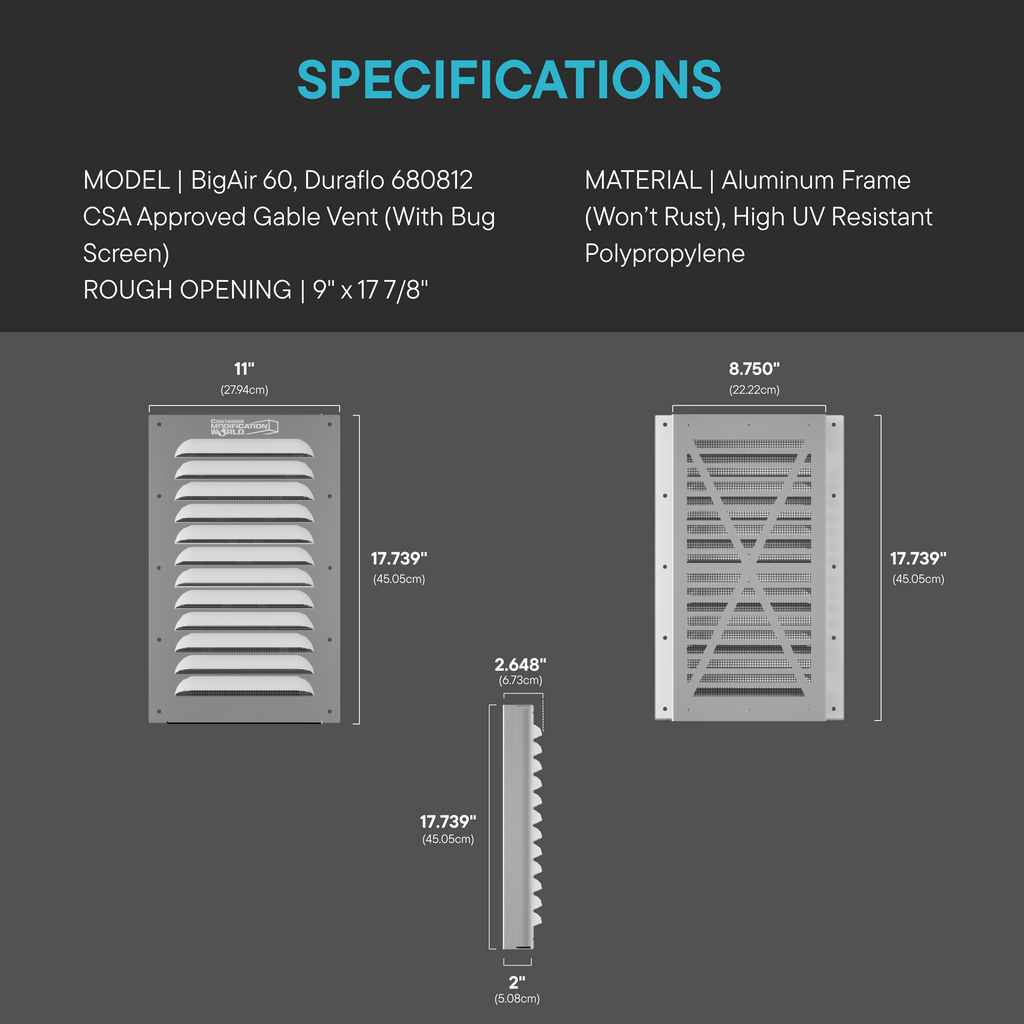

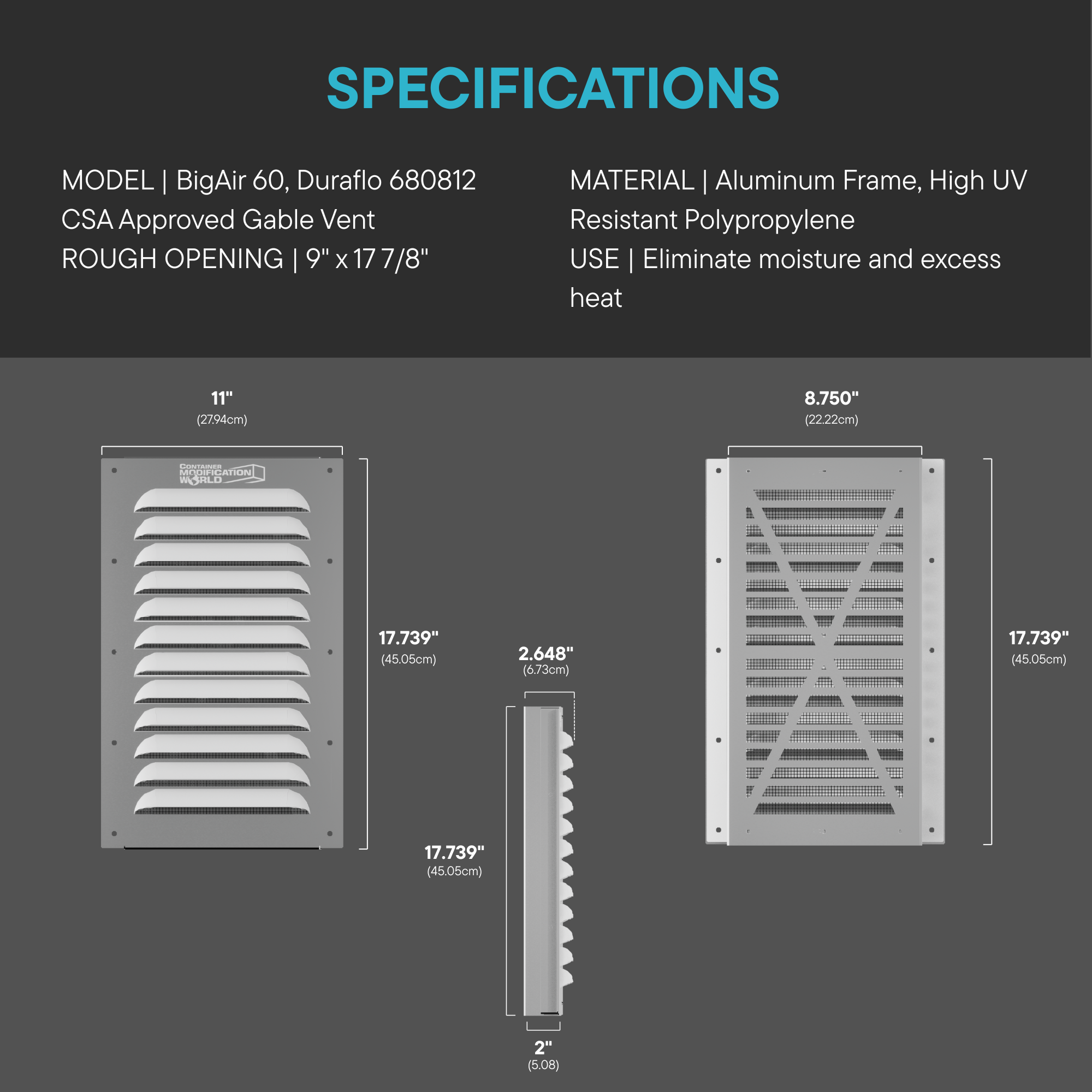

Specifications

• Engineered to be installed anywhere on shipping container side walls, end walls, or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
• Utilizes Duraflo 680812 CSA Approved Gable Vent
• High UV-resistant polypropylene and laser-cut aluminum frame will never rust!
• 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose
• BigAir 30 = 9” x 10 ½” Rough Opening
• BigAir = 9" x 14" Rough Opening
• BigAir = 9” x 17 ⅞” Rough Opening
• Disclaimer: ensure your container complies with OSHA when storing hazardous materials

Included hardware

• A minimum of two vents are required per container for temperature & moisture control in temperate climates.
• Four vents per container are suggested in tropical climates.
• For HAZMAT ventilation, two vents installed high (3" down from the 60mm tubing) and two vents installed low (6" up from the container floor) are suggested.
• It is the customer's responsibility to ensure OSHA compliance when storing hazardous materials.
• Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self-Tapping Screws



Photo gallery



Installation Instructions

BIG AIR® 30 Installation Instructions (Download PDF)
BIG AIR® 45 Installation Instructions (Download PDF)
BIG AIR® 60 Installation Instructions (Download PDF)
