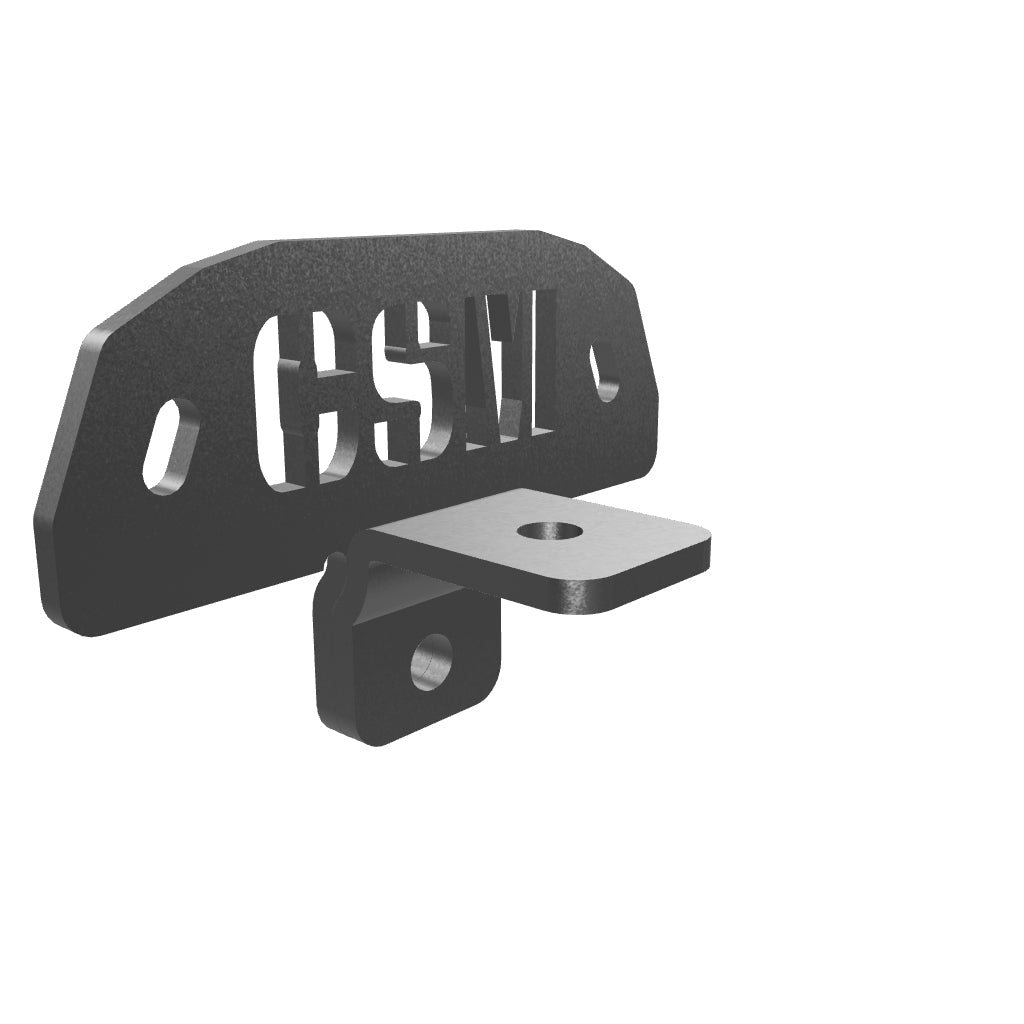

Modular Strut Systems Container Strut Mount (CSM) premium galvanized bracket kit, featuring heavy-duty base and angle bracket for mounting strut channels inside ISO shipping containers.

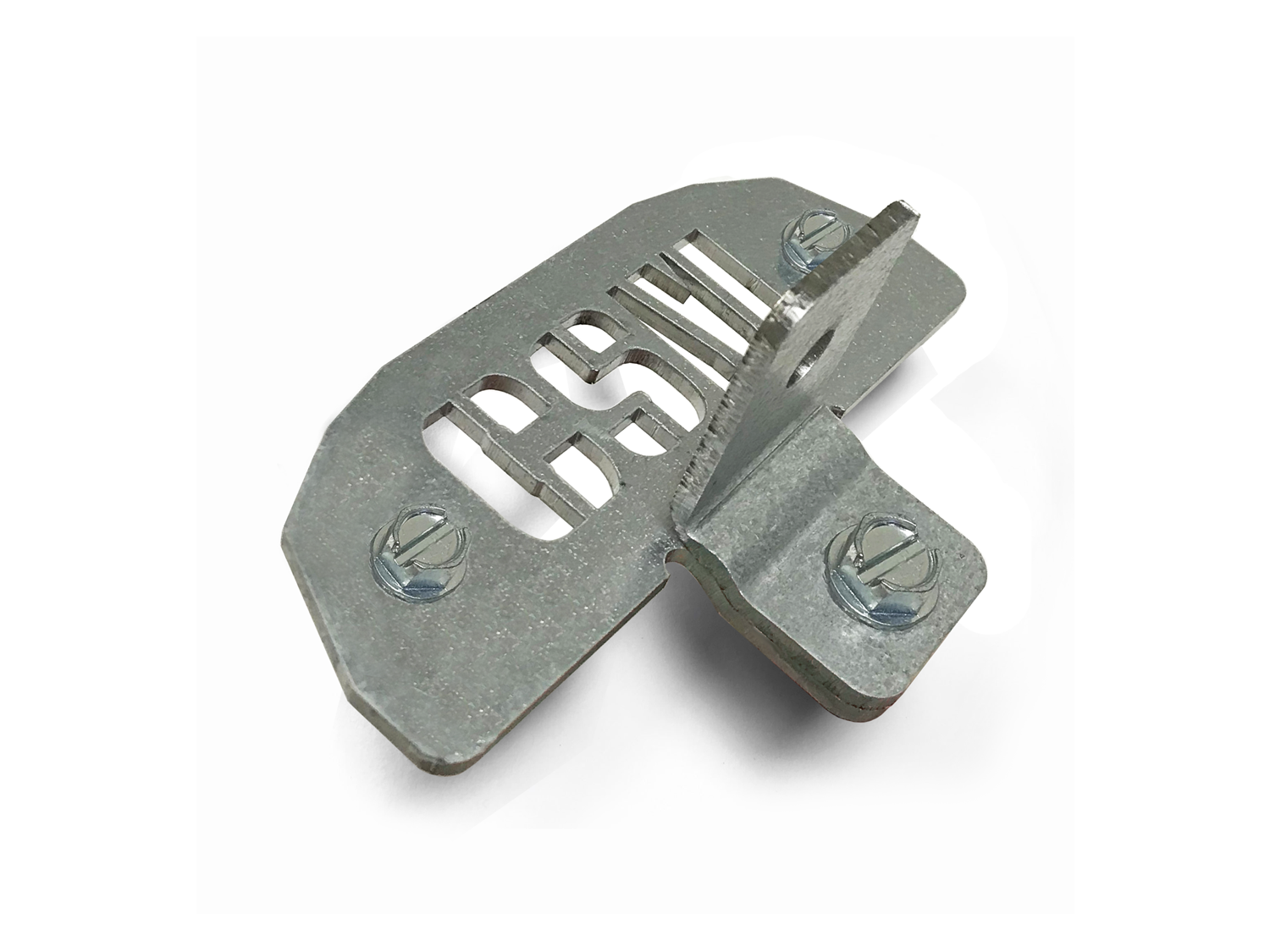

Galvanized Container Strut Mount (CSM) bracket with laser-cut logo, designed for mounting strut channels inside shipping containers without welding.

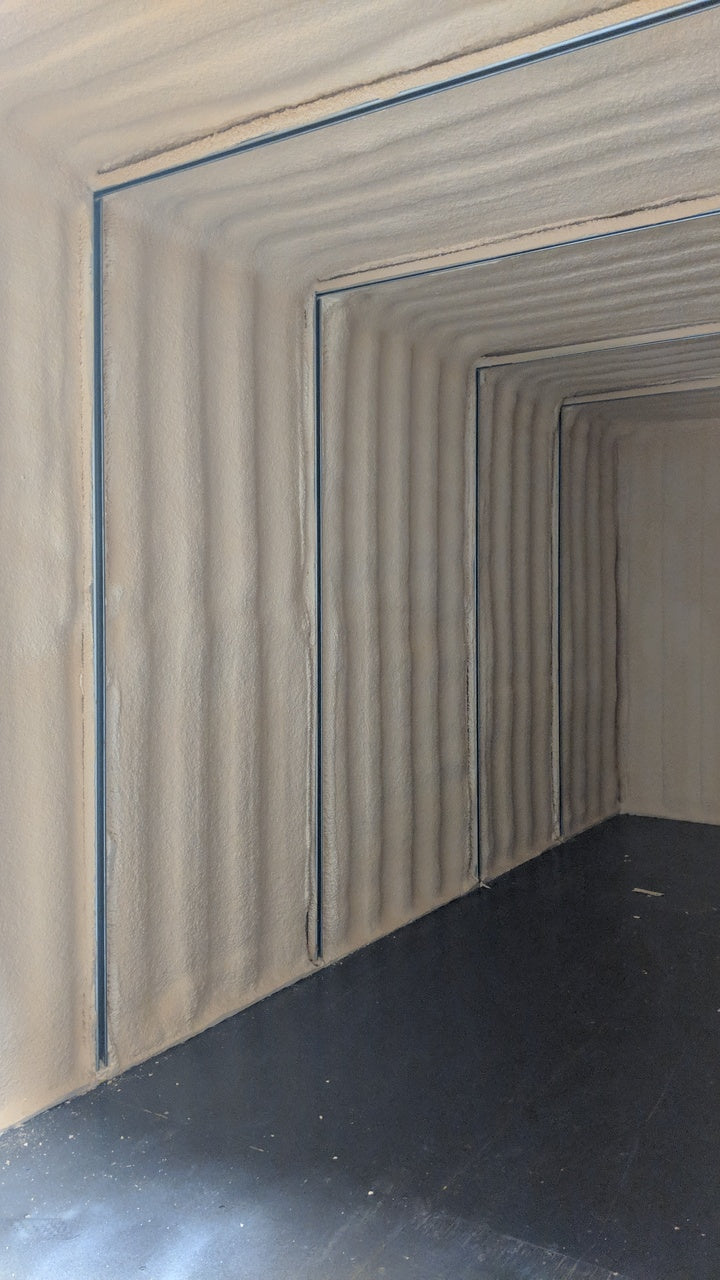

Interior of a shipping container with spray foam insulation and vertical steel strut channels installed for framing or mounting systems.

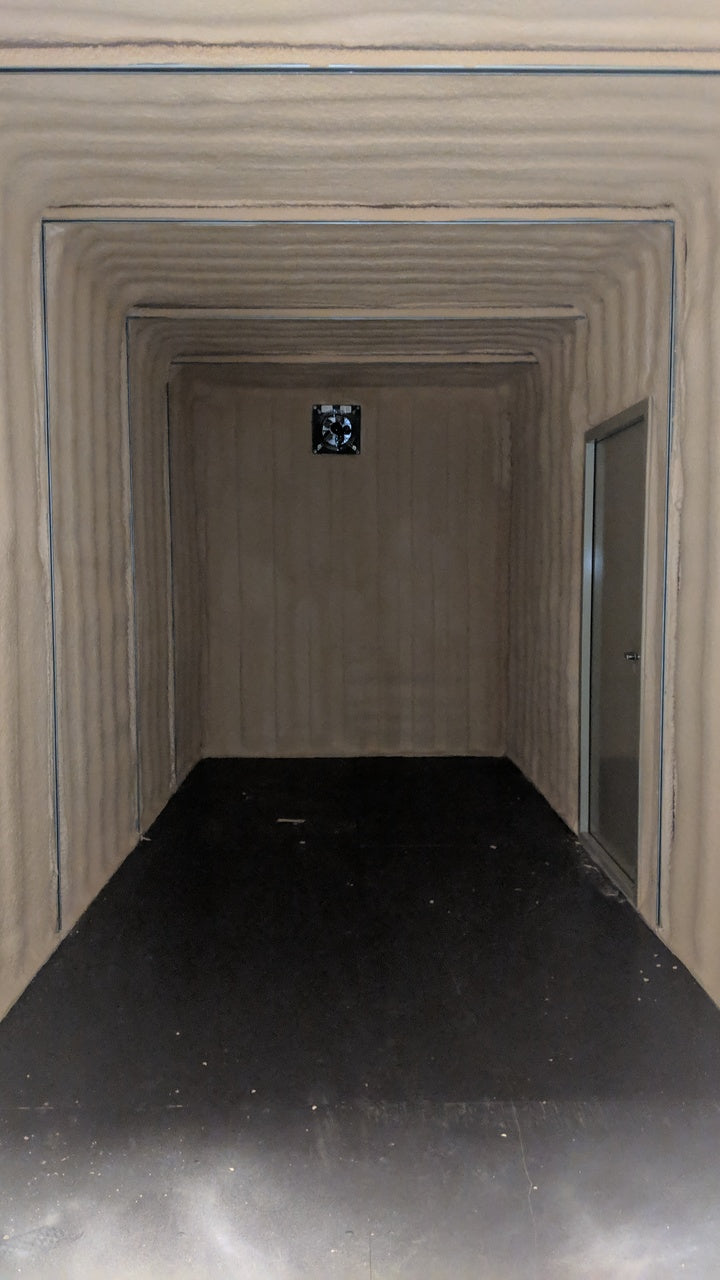

Interior of an insulated shipping container featuring spray foam insulation, a ventilation fan on the back wall, and a framed man door on the right side.

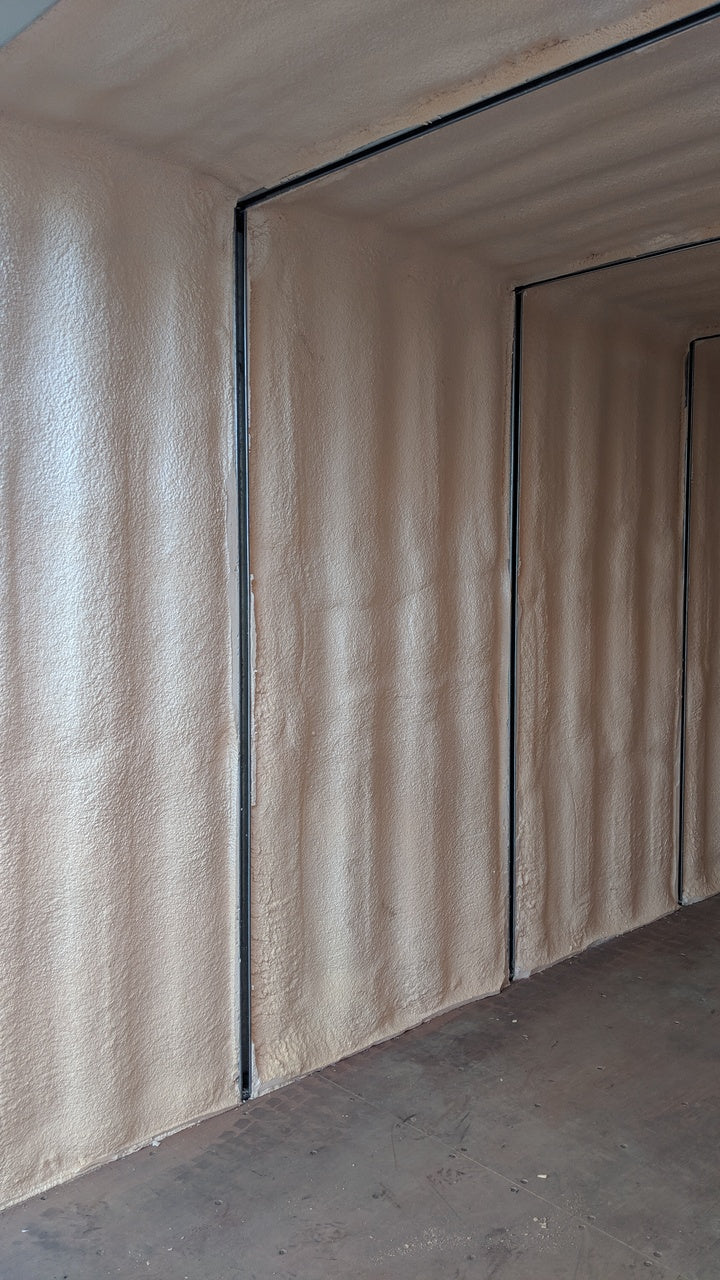

Interior close-up of a spray foam insulated shipping container, showing smooth foam application along corrugated steel walls for enhanced thermal performance and moisture control.
Roll over image to zoom in Click on image to zoom
Modular Strut Systems Container Strut Mount (CSM) premium galvanized bracket kit, featuring heavy-duty base and angle bracket for mounting strut channels inside ISO shipping containers. CSM framing bracket Installation VideoGalvanized Container Strut Mount (CSM) bracket with laser-cut logo, designed for mounting strut channels inside shipping containers without welding.Interior of a shipping container with spray foam insulation and vertical steel strut channels installed for framing or mounting systems.Interior of an insulated shipping container featuring spray foam insulation, a ventilation fan on the back wall, and a framed man door on the right side.Interior close-up of a spray foam insulated shipping container, showing smooth foam application along corrugated steel walls for enhanced thermal performance and moisture control. 360 animation Container strut mount framing brackets

Container Strut Mount (CSM ) Galvanized Framing Brackets (10 Pack)

Container Modification World
Material: Galvanized Finish
Price:
$174.95
Product Details

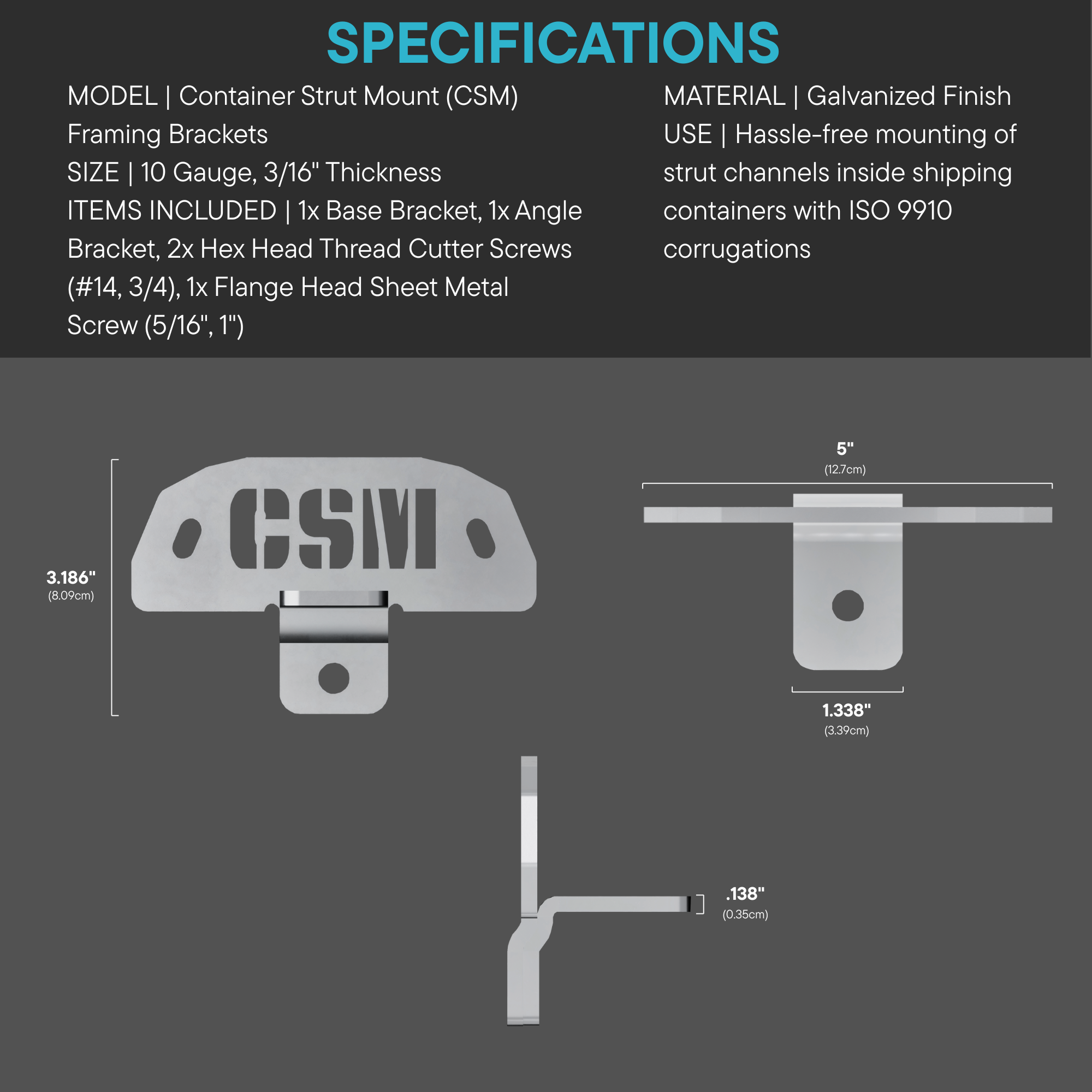

Container Strut Mount (CSM) Galvanized Framing Brackets (10 Pack), allow for hassle-free mounting of strut channels inside any shipping container using ISO 9910 corrugations.

Each bracket Includes:

10 x Base Bracket

10 x Angle Bracket

22 (2 Extra) x Hex Head Thread Cutter Screws (#14, 3/4)

11 (1 Extra) x Flange Head Sheet Metal Screw (5/16",1")

Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Requires 7/32 drill bit.

► 10 gauge, 3/16" Thickness
► Ideal for installing shelving and electrical panels in shipping containers
► Provides strut framing without welding
► Solves the safety hazard issue of screws poking through the exterior wall
► Laser-cut with Galvanized Finish

 

Installation Instructions

Instructions Coming Soon

Short Link

https://containermodificationworld.com/csm-brackets

Description

Container Strut Mount (CSM) Galvanized Framing Brackets (10 Pack), allow for hassle-free mounting of strut channels inside any shipping container using ISO 9910 corrugations.

Each bracket Includes:

10 x Base Bracket

10 x Angle Bracket

22 (2 Extra) x Hex Head Thread Cutter Screws (#14, 3/4)

11 (1 Extra) x Flange Head Sheet Metal Screw (5/16",1")

Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts. Requires 7/32 drill bit.

► 10 gauge, 3/16" Thickness
► Ideal for installing shelving and electrical panels in shipping containers
► Provides strut framing without welding
► Solves the safety hazard issue of screws poking through the exterior wall
► Laser-cut with Galvanized Finish


Installation Instructions

Instructions Coming Soon

Short Link

https://containermodificationworld.com/csm-brackets

You may also like

Recently viewed

Customer Reviews

Based on 2 reviews
0%
(0)
50%
(1)
50%
(1)
0%
(0)
0%
(0)
R
RCSI
Interference with built-in securement loops.

Seems well made, but not sure how these work with the built-in loops on my Seacan upper & lower rails. It seems I would have to cut the built in tether loops to install these brackets where I need them.
I think I will opt to use 3-hole unistrut 90's for most of my mount points, which will leave the built-in loops as they are for future uses.

M
MCline
Looks good

They look very well made. Only 4 stars because I haven't had an opportunity to install them yet.
