Description

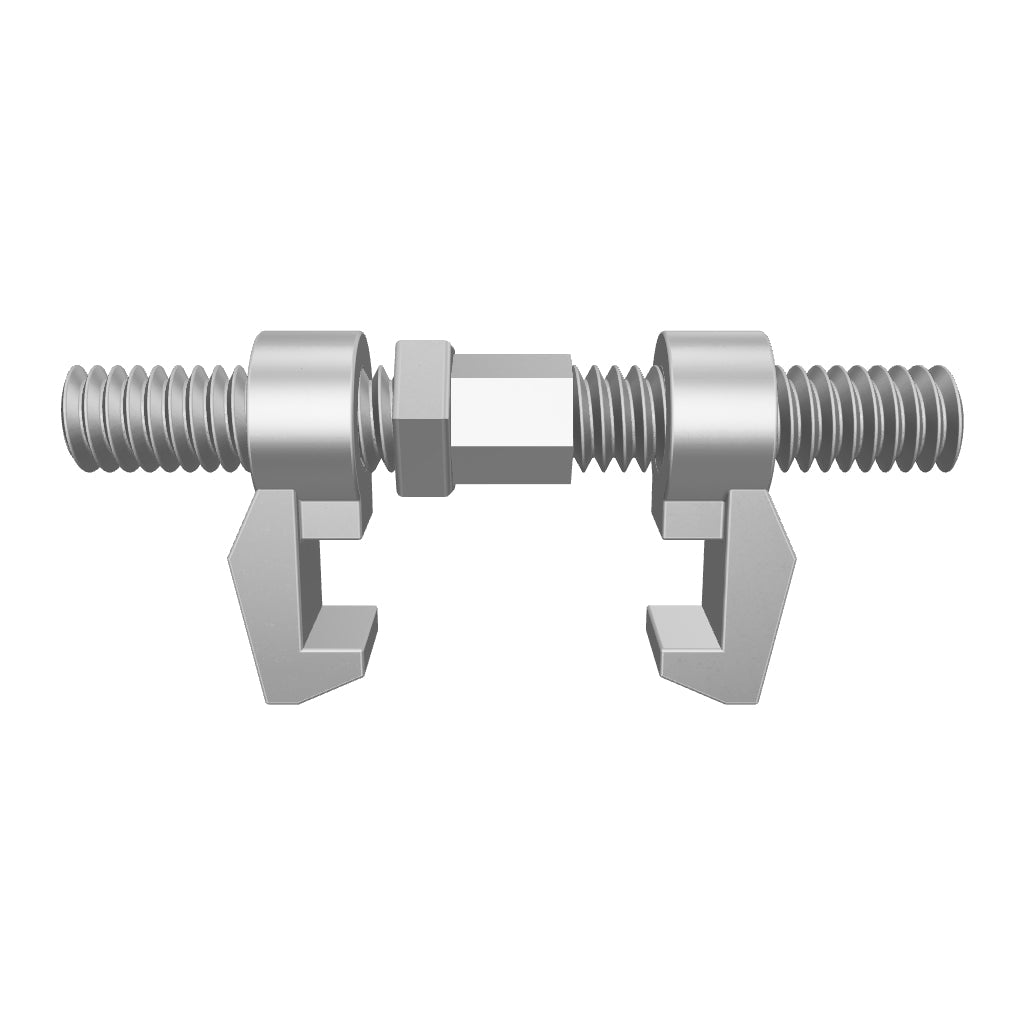

Safely connect shipping containers to each other. Designed to safely and securely connect empty or loaded shipping containers horizontally and are made to fit into container corner castings. Each container requires 4 bridge fittings for safe horizontal flush connections.

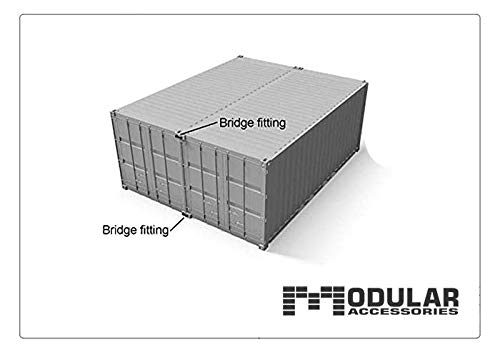

► Used to couple two ISO shipping containers together side to side or end to end.
► Drop forged steel hooks
► Hot dip galvanized finish

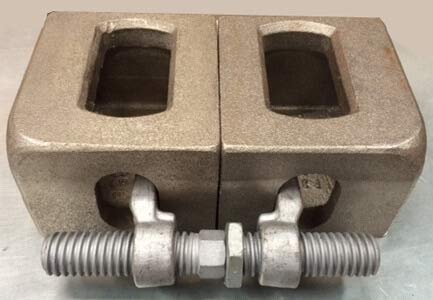

► Made to fit into container corner castings
► Capacity safe working load: 10 tons
► Compatible with all ISO type containers
► Designed to couple 2 ISO Containers together side to side or end to end.
► Normally use one bridge fitting on each corner (4 total)
► Rated Capacity (10 tons): 22,046 lbs/10,000 kgs
► Tare Weight: 10.1 lbs/4.6 kg

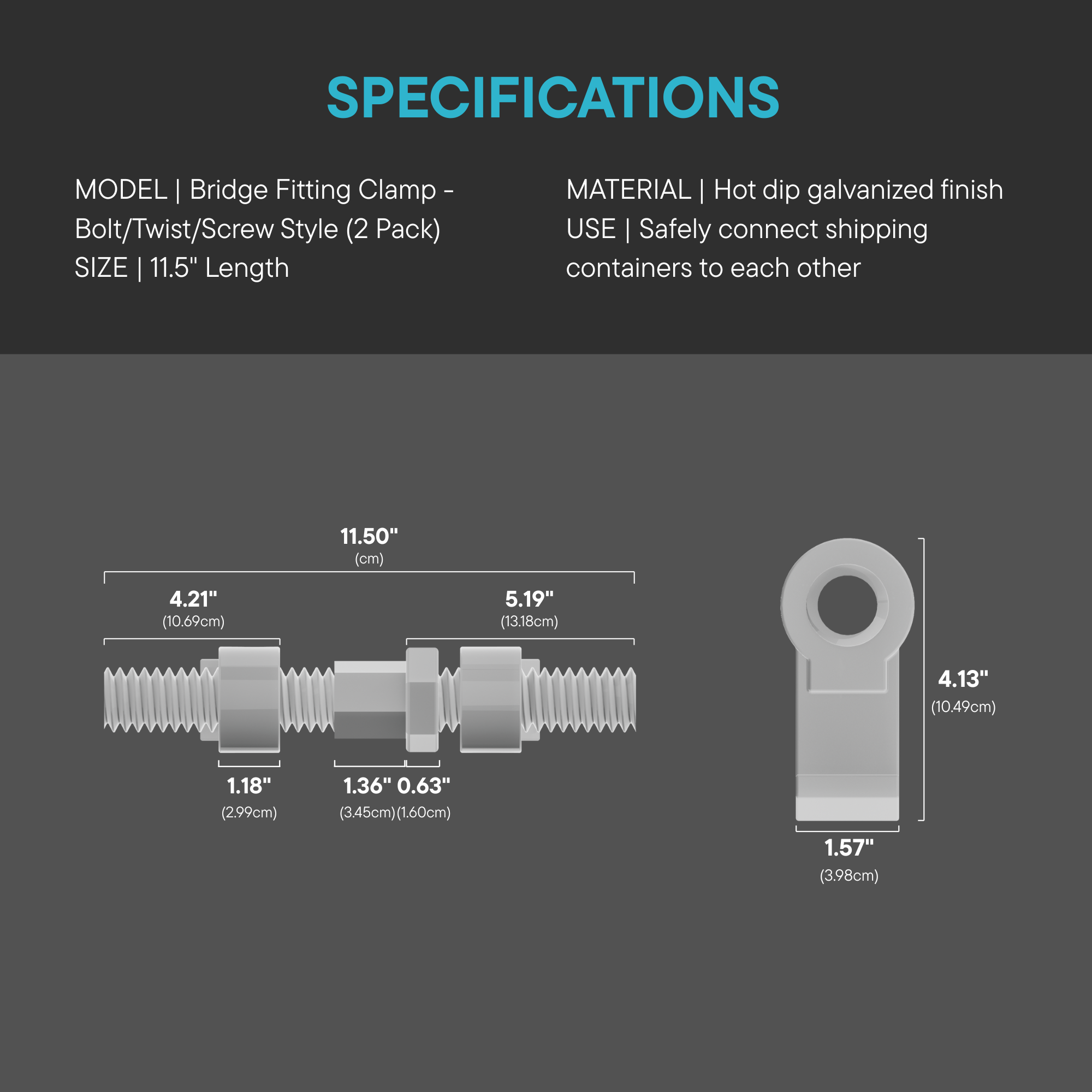

► 11.5" Length
Installation Instructions
Instructions Coming Soon
