Description

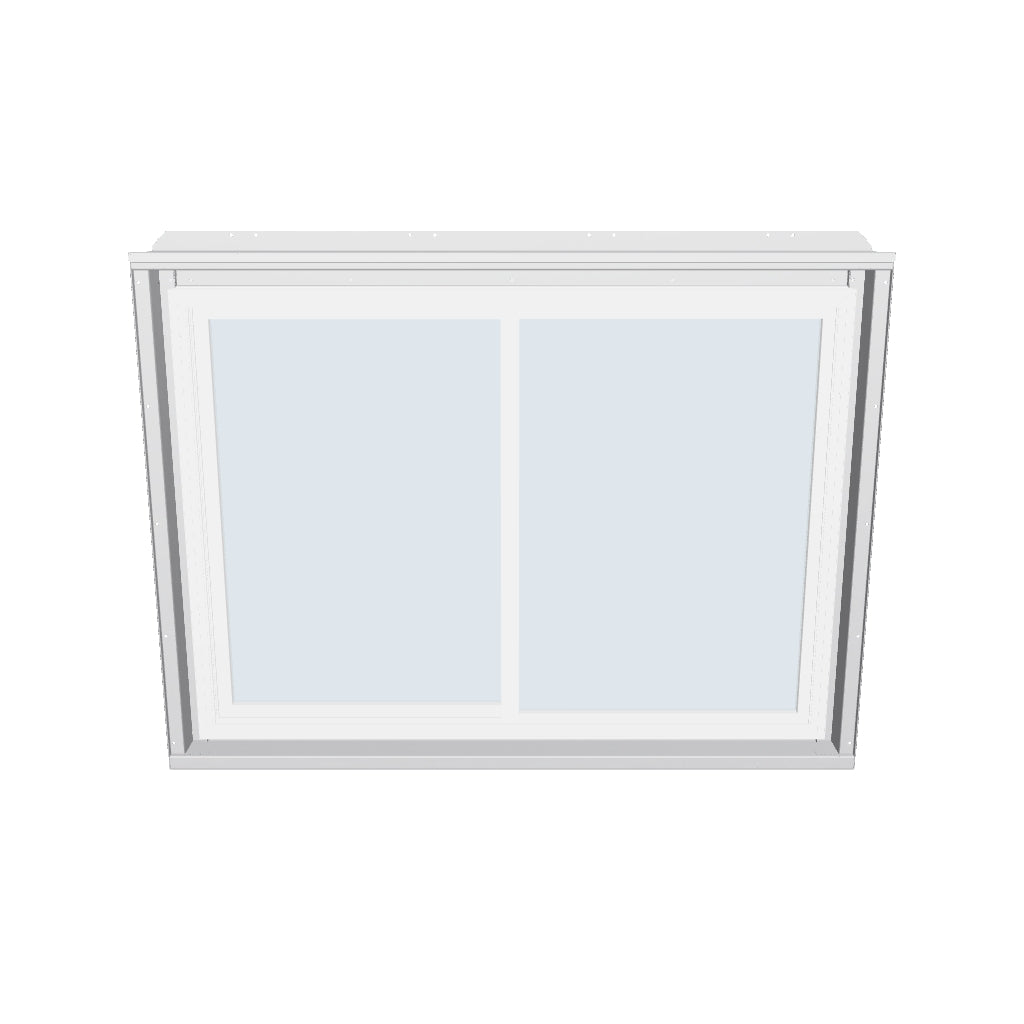

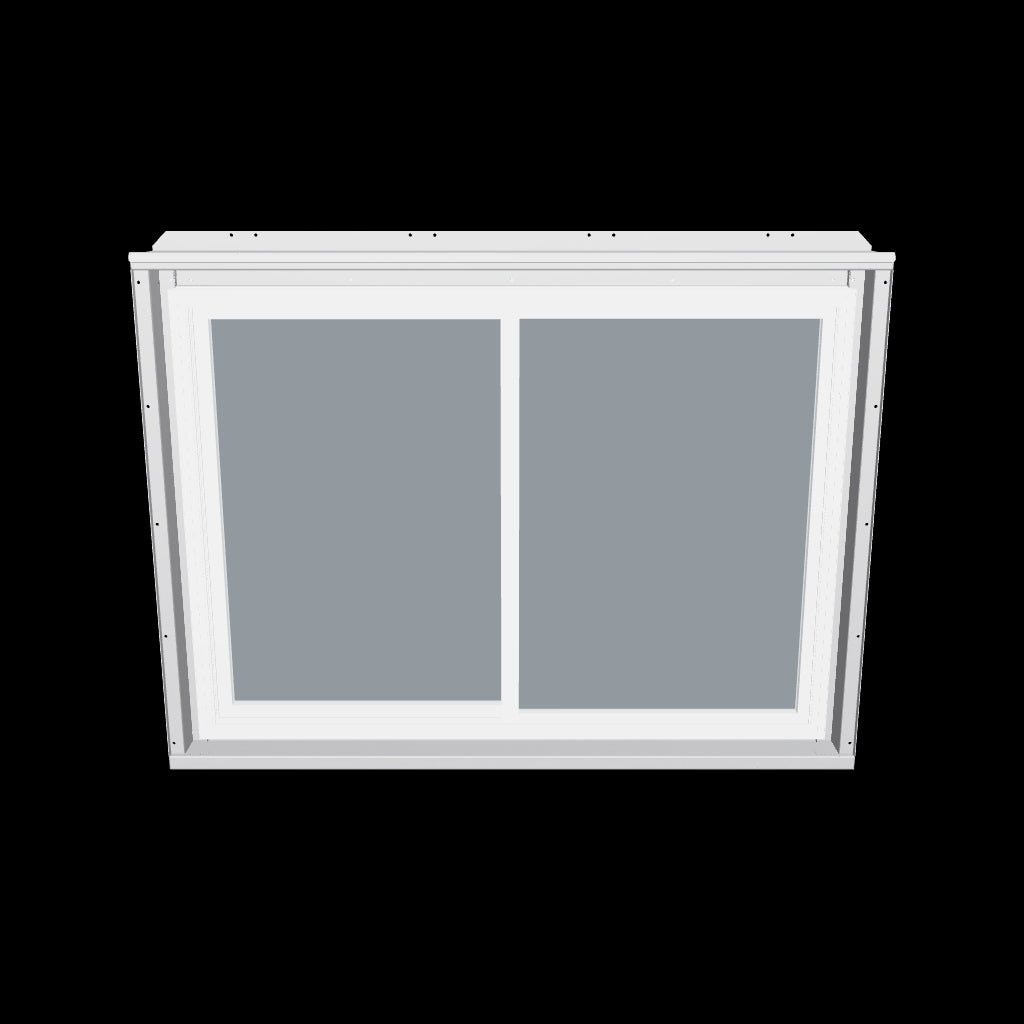

42" x 30" Side Wall Window Frame + 42" x 30" Vinyl Window (BUNDLE)
NEW & IMPROVED DESIGN!
- Framing kits allow for quick and easy installation of any appropriately sized window with a vinyl nailing strip.
- Patent Pending
- To purchase vinyl window only, please see our vinyl window listings.

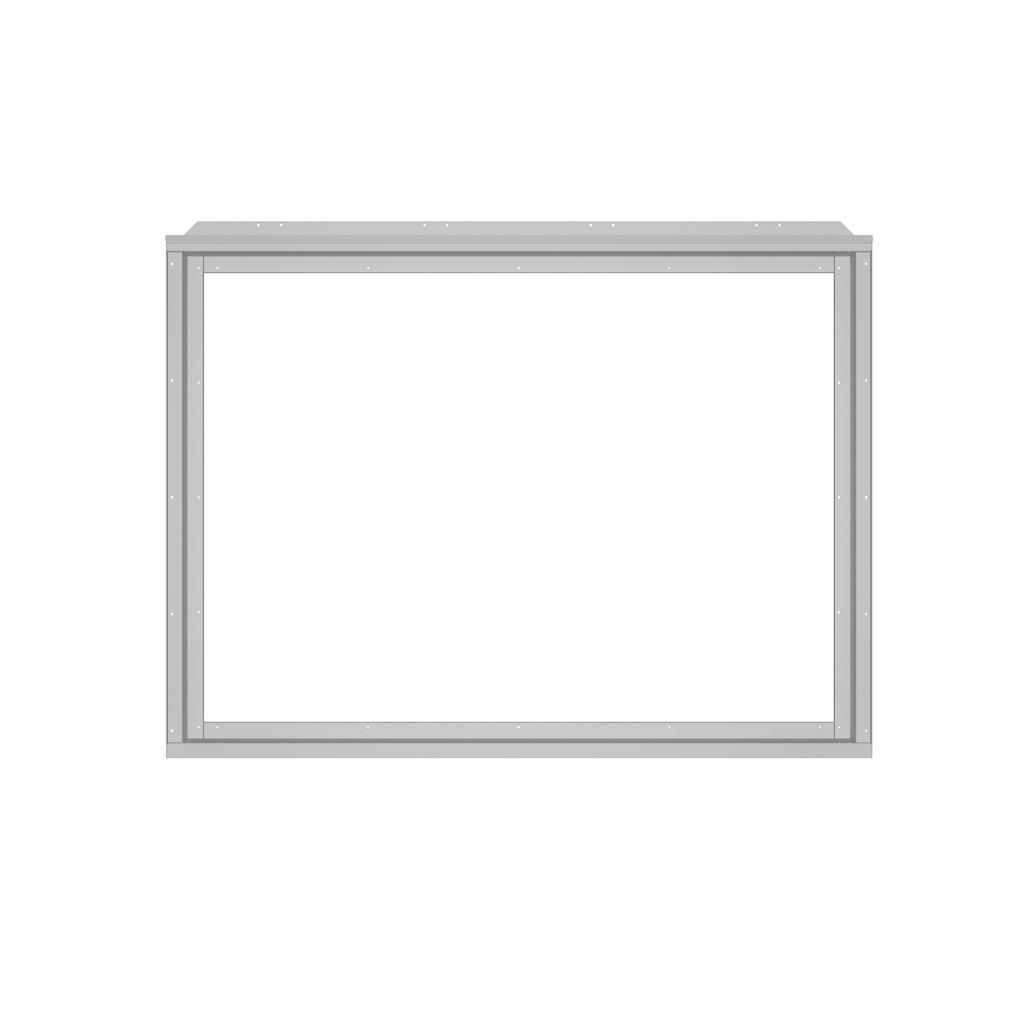

- Galvanized steel frame components.
- Our engineered framing kits are laser cut with perfectly matched, symmetrical hole locations for a quick, easy, and clean install. The folded profile allows water to shed easily.

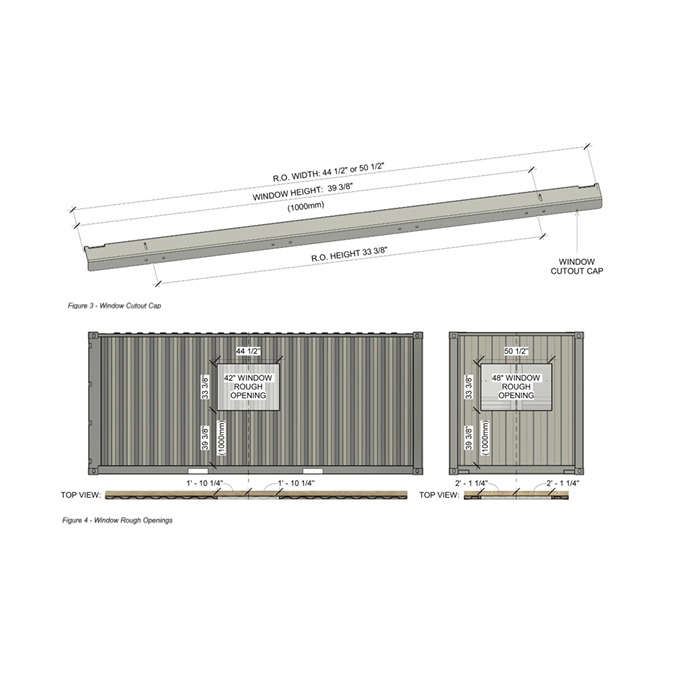

- Window cutout cap doubles as a marking tool!
Specifications
- Palletized Dimensions: 50" x 35" x 8"
Before starting the process of installation, please take note that :
- CMW™ window frames are corrugation-dependent. The 42” window frames can only be installed on side wall corrugations and the 48” window frames can only be installed on end wall corrugations.
- Other than the difference in wall placement and rough opening size, the installation of these two frames is the same.
Included hardware
- 54 Rivets - Steel/Steel, 3/16", 1/2", Closed Rivets
- Includes all necessary hardware and edge trim for the top of the window for a clean appearance and watershed seal.
Photo Gallery
Video gallery
Installation Instructions
Window Frame Installation Instructions (Download PDF)
