High Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not Included
High Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not Included
High Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not Included
Roll over image to zoom in Click on image to zoom
High Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not IncludedHigh Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not IncludedHigh Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not Included

High Cube Container Size (9'6" Tall Container) End Wall Galvanized RUD Framing Kit (7' x 7'3") - Door Not Included

Container Modification World
Price:
$800.00
Contact us

IMPORTANT: We only sell the framing kit, we have included the required information below to order the roll up door itself

Manufacture: Janus International (https://www.janusintl.com/)

Model: 650 Series

US Customers

For our US Customers the door can be purchased directly from Janus International or  from one of their larger US distributors, Steel Door Depot (https://www.steeldoordepot.com/) with confidence that the door they receive will pair with the framing kit.

Canadian Customers

For our Canadian Customers the door can be purchased directly from Janus International or from their Canadian distributor, Discount Dave's (https://www.discountdaves.ca/) with confidence that the door they receive will pair with the framing kit.


Provide your chosen door supplier with the rough opening dimensions

Janus Roll Up Door Model 650 PDF

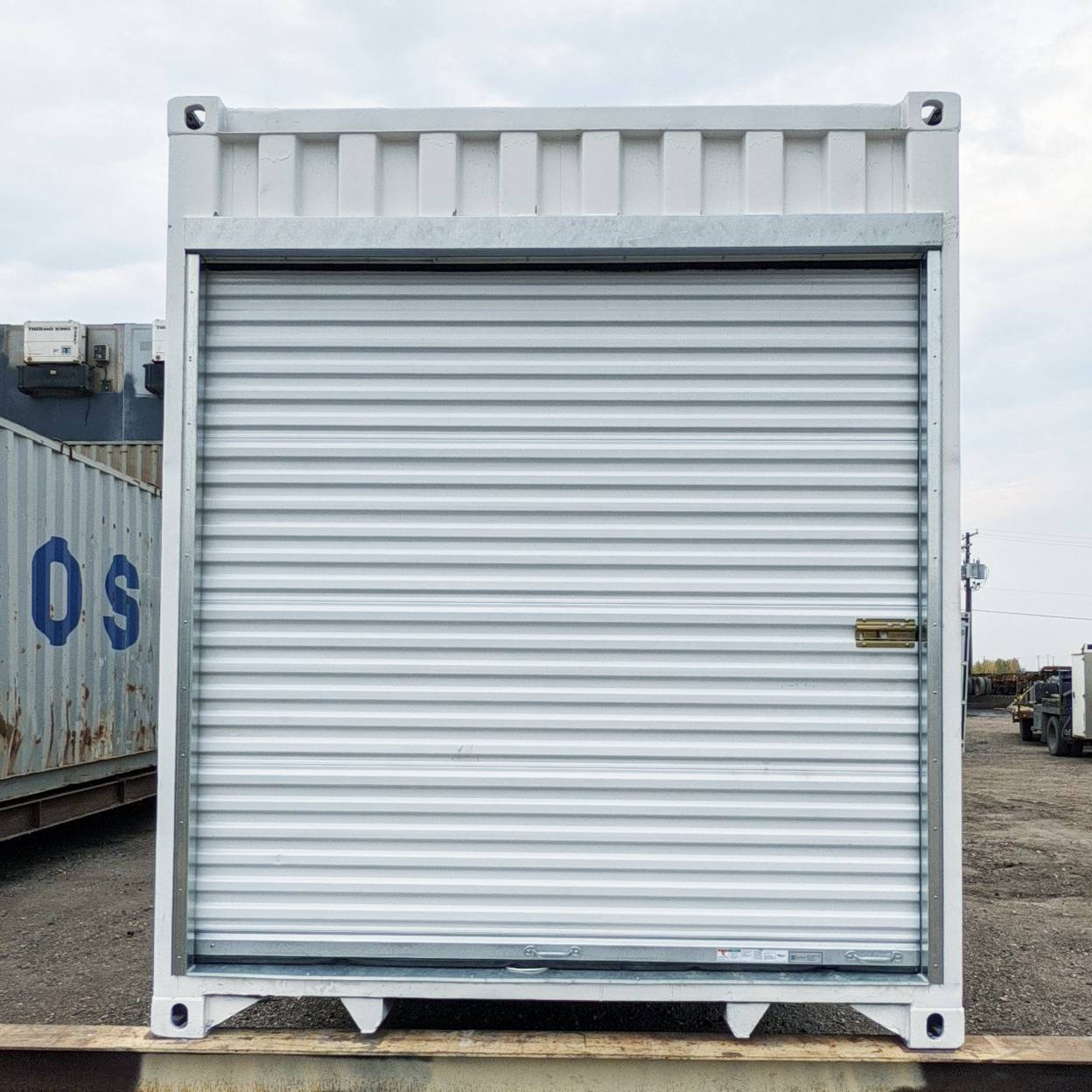

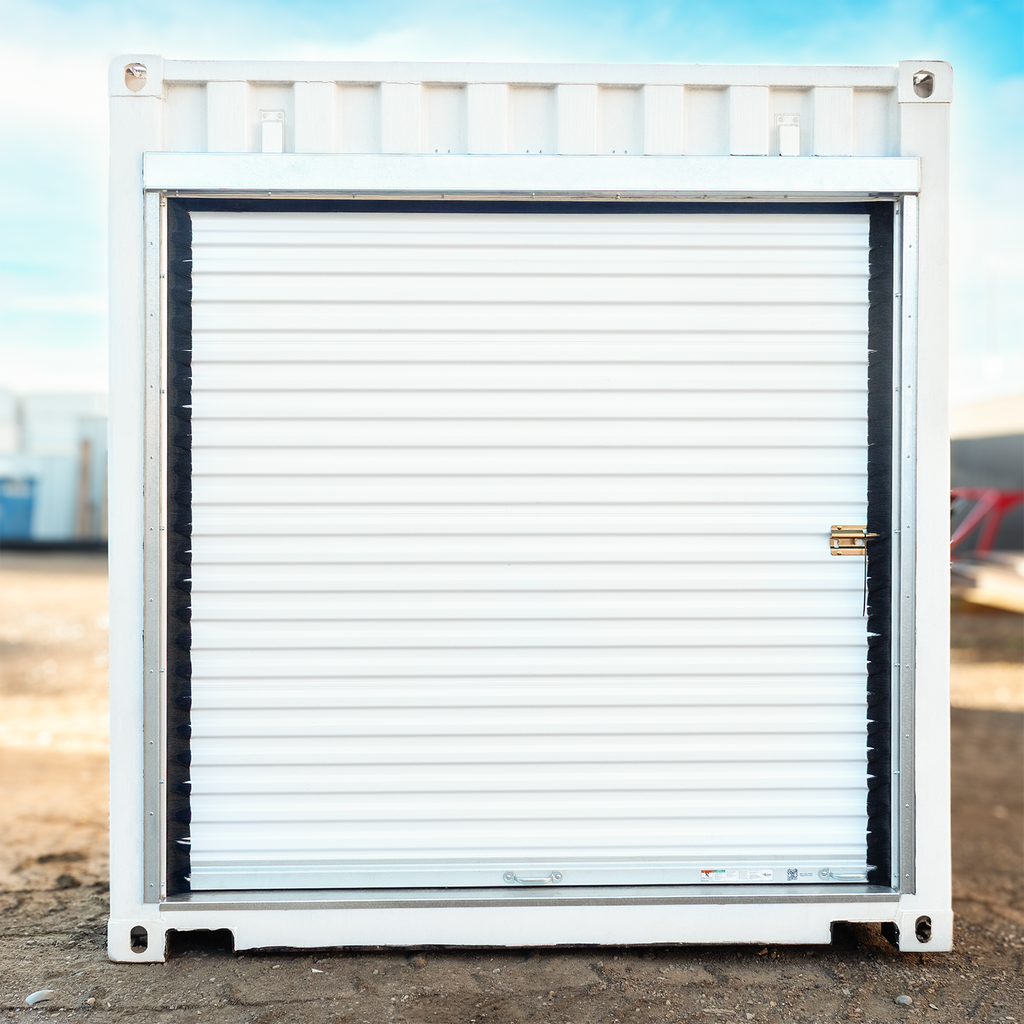

This framing kit allows for quick and easy installation of any appropriately sized roll-up door on the sidewall of a container. The door is not included.

Brush seal option is available.

Engineered framing kit is laser cut with all perfectly matched, symmetrical hole locations for quick, easy, and clean installation. The folded profile sheds water perfectly.

Comes with galvanized steel frame components, all necessary hardware and edge trim for the top of the door for a clean appearance and watershed seal.

You'll notice the door size is in inches. This is because containers are metric and designed using mm. Therefore, instead of trying to fit 6', 7', 8', 9', and 10' doors in corrugations that are 278 mm o/c, we have designed the optimum door size to fit the optimum frame design. The new dimensions are slightly larger which is great because an 8' pallet now fits through a 98 1/2" door.

If you are a dealer, this may require a little adjustment to your system/inventory but once you make the switch, we promise, you won't look back.

Included Hardware

  • No.8 Regular, 1" Wafer Head Screws
  • No.12, 7/8" Hex Head Self Tapping Screws
  • Steel/Steel, 3/16", 1/2", Open Rivets

     



https://containermodificationworld.com/high-cube--side-wall-rud-framing-kits

Description

IMPORTANT: We only sell the framing kit, we have included the required information below to order the roll up door itself

Manufacture: Janus International (https://www.janusintl.com/)

Model: 650 Series

US Customers

For our US Customers the door can be purchased directly from Janus International or  from one of their larger US distributors, Steel Door Depot (https://www.steeldoordepot.com/) with confidence that the door they receive will pair with the framing kit.

Canadian Customers

For our Canadian Customers the door can be purchased directly from Janus International or from their Canadian distributor, Discount Dave's (https://www.discountdaves.ca/) with confidence that the door they receive will pair with the framing kit.


Provide your chosen door supplier with the rough opening dimensions

Janus Roll Up Door Model 650 PDF

This framing kit allows for quick and easy installation of any appropriately sized roll-up door on the sidewall of a container. The door is not included.

Brush seal option is available.

Engineered framing kit is laser cut with all perfectly matched, symmetrical hole locations for quick, easy, and clean installation. The folded profile sheds water perfectly.

Comes with galvanized steel frame components, all necessary hardware and edge trim for the top of the door for a clean appearance and watershed seal.

You'll notice the door size is in inches. This is because containers are metric and designed using mm. Therefore, instead of trying to fit 6', 7', 8', 9', and 10' doors in corrugations that are 278 mm o/c, we have designed the optimum door size to fit the optimum frame design. The new dimensions are slightly larger which is great because an 8' pallet now fits through a 98 1/2" door.

If you are a dealer, this may require a little adjustment to your system/inventory but once you make the switch, we promise, you won't look back.

Included Hardware

  • No.8 Regular, 1" Wafer Head Screws
  • No.12, 7/8" Hex Head Self Tapping Screws
  • Steel/Steel, 3/16", 1/2", Open Rivets



Installation Instructions

Download Installation Instructions (PDF)
